Mercury BRAVO Service Manual

OILDYNE TRIM PUMP
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 5A-49
Reassembly

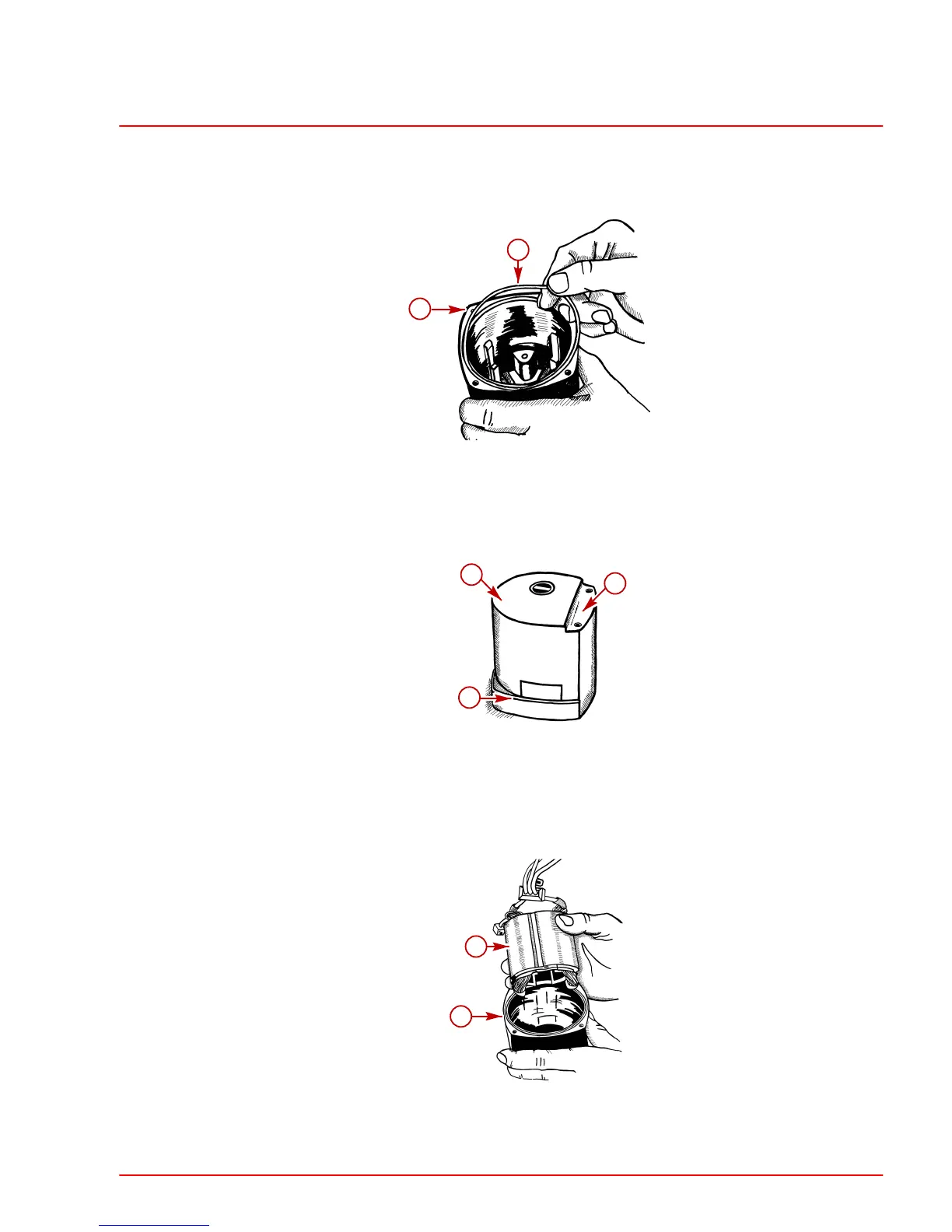

1. Install the motor housing O-ring.
22645
a
b
a-O-ring
b-Motor Housing
IMPORTANT: The field assembly wires must face the front of the motor housing. Use
the notched area in the housing as a reference in determining the front.
22633
c
b
a
a-Motor Housing
b-Front
c-Notched Area
2. Install the field assembly into the motor housing.
22501
a
b
a-Field Assembly
b-Motor Housing
