ACCESSORIES - ALL MODELS SERVICE MANUAL NUMBER 28
Page 8A-2 90-863160 MAY 2000
Specifications
Torque Specifications
Description lb-in. lb-ft
Nm
Dust Cover 34 4
Inlet Flange 132 15
Valve Guide Bracket Through Bolts 72 8
End Plate to Valve Guide Bracket 132 15
End Plate to Cylinder 240 27
Lubricants / Sealants / Adhesives
DESCRIPTION PART NUMBER
2-4-C Marine Lubricant with Teflon 92-825407A1
Power Shift (P/N 38638A4)

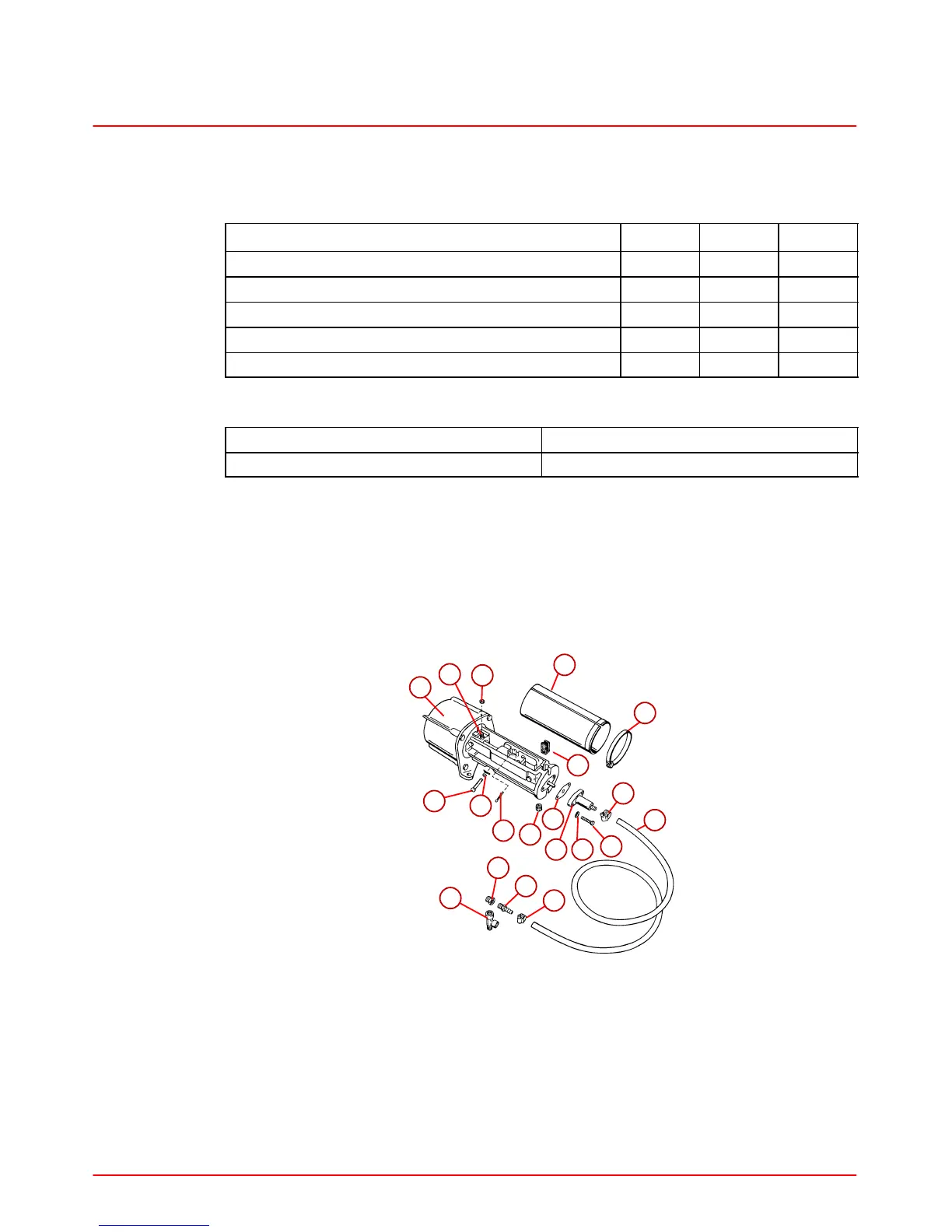

Description
The power shift cylinder is a vacuum actuated cylinder that assists the mechanical shifting.
It utilizes the vacuum produced in the intake manifold. The vacuum is routed by hose to the
shift cylinder.
50419
1
2
3
4
5
6
8
9
10
11
12
13
7
14
15
16
17
18
19
20
1-Power Shift Assembly
2-Output Cable Stud
3-Output Cable Stud Nut
4-Clevis Pin
5-Input Cable Washer and Cotter Pin
6-Cotter Pin
7-Felt Power Shift Cylinder Plug
8-Flange
9-Inlet Flange Gasket
10-Screw
11 - Lockwasher
12-Dust Shield
13-Clamp
14-Spacer
15-Vacuum Hose Clamp
16-Vacuum Hose
17-Vacuum Hose to Engine Fitting Clamp
18-Vacuum Hose Fitting
19-Vacuum Hose Fitting Reducer Bushing
20-T-fitting (used only with vacuum gauge)
