Mercury BRAVO Service Manual

DRIVE SHAFT HOUSING SERVICE MANUAL NUMBER 28
Page 3A-54 90-863160 MAY 2000

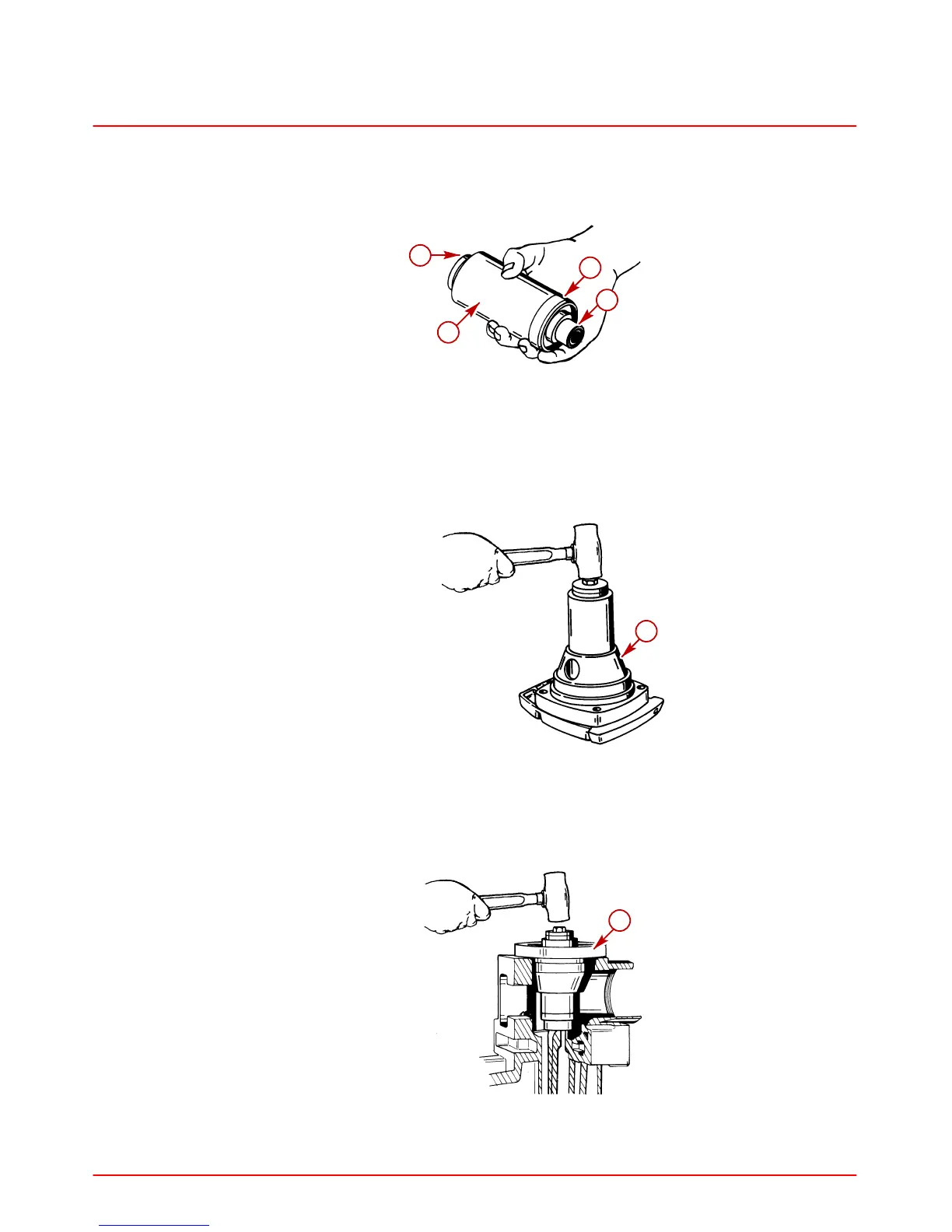

Roller Bearing Installation
1. Install driver head onto puller guide. Secure driver head to puller guide with screw. Lubri-
cate inside diameter of roller bearing and place roller bearing on driver head, as shown.
75967
a
b
c
d
a-Driver Head (91-862530)
b-Puller Guide (91-90774)
c-Screw (91-90775)
d-Roller Bearing
2. Place driver guide on top cover, as shown. Install puller guide assembly through driver
guide and install roller bearing by tapping into place until tool bottoms out.
75968
a
a-Driver Guide (91-90244)
3. Place driver guide into top of drive shaft housing, as shown. Install puller guide assembly
through driver guide and install roller bearing by tapping into place until tool bottoms out.
a
a-Driver Guide (91-90244)
