AUTO TRIM II

SERVICE MANUAL NUMBER 28

90-863160 MAY 2000 Page 5D-11

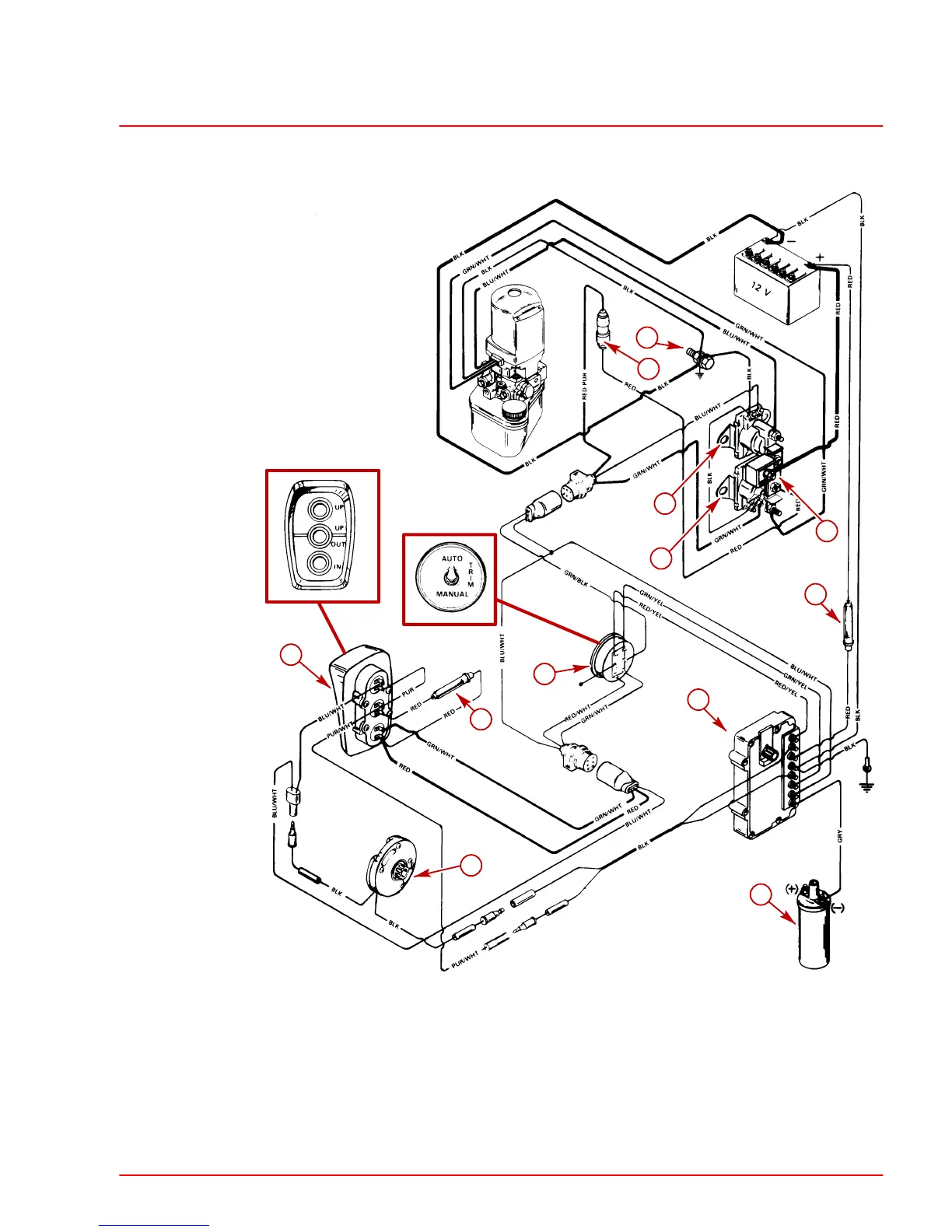

Wiring Diagram

70023

BLK = BLACK

BLU = BLUE

BRN = BROWN

GRY = GRAY

GRN = GREEN

ORN = ORANGE

PNK = PINK

PUR = PURPLE

RED = RED

TAN = TAN

WHT = WHITE

YEL = YELLOW

LIT = LIGHT

DRK = DARK

a-20 Amp Fuse

b-Ground Bolt (Floor Mount)

c-UP Solenoid

d-110 Amp Fuse

e-DOWN Solenoid

f-Trim Limit Switch

g-Ignition Coil

h-Control Module

i-Auto/Manual Switch

j-Trim Switches (Various Styles)
