BRAVO THREE GEAR HOUSING
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 3D-29
Gear Housing Reassembly and Shimming
1. Lubricate all bearings with Quicksilver High Performance Gear Lube before installing.
Components must be lubricated to obtain accurate bearing preload readings.

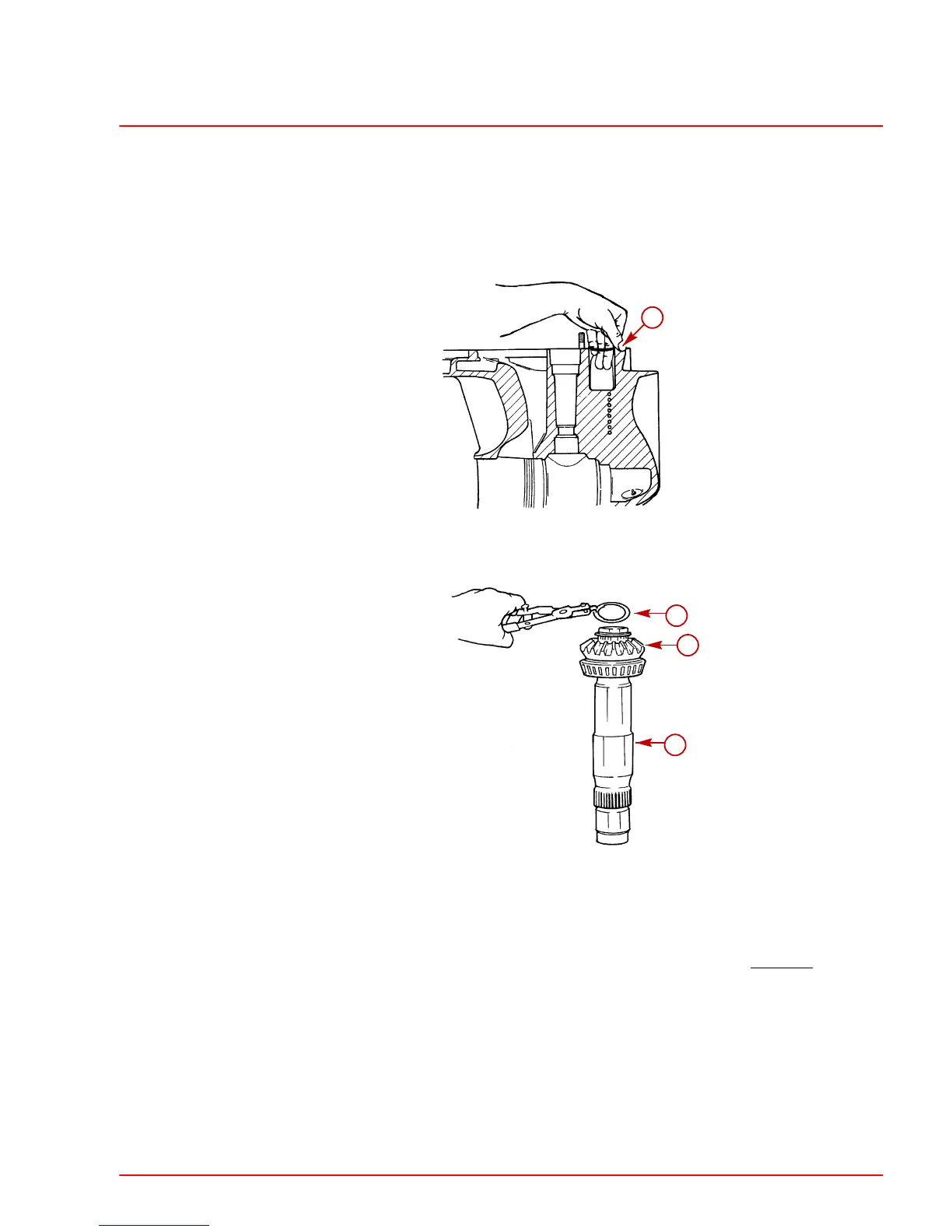

2. Install water passage O-ring and oil passage quad ring. Hold in place using 3-M Adhe-
sive.
72252
a
a-Water Passage O-Ring
3. Install driven gear and bearing assembly to outer propeller shaft. Secure with snap ring.
72213
a
b
c
a-Driven Gear And Bearing Assembly
b-Snap Ring
c-Outer Propeller Shaft
NOTE: The shim installed in the following step is used to regulate prop-shaft end-play. Use
the existing shim as a starting point ONLY if shafts, gears, or bearings were not
replaced.
If any of the components were replaced, use a .020 in. shim as a starting point. This shim
may need to be adjusted if the end-play is not within specifications (See “Checking Propeller
Shaft End-Play” later in this section).
