BRAVO THREE GEAR HOUSING SERVICE MANUAL NUMBER 28
Page 3D-42 90-863160 MAY 2000
Installing Gear Housing On Drive Shaft Housing
1. Install gear housing to drive shaft housing as follows:

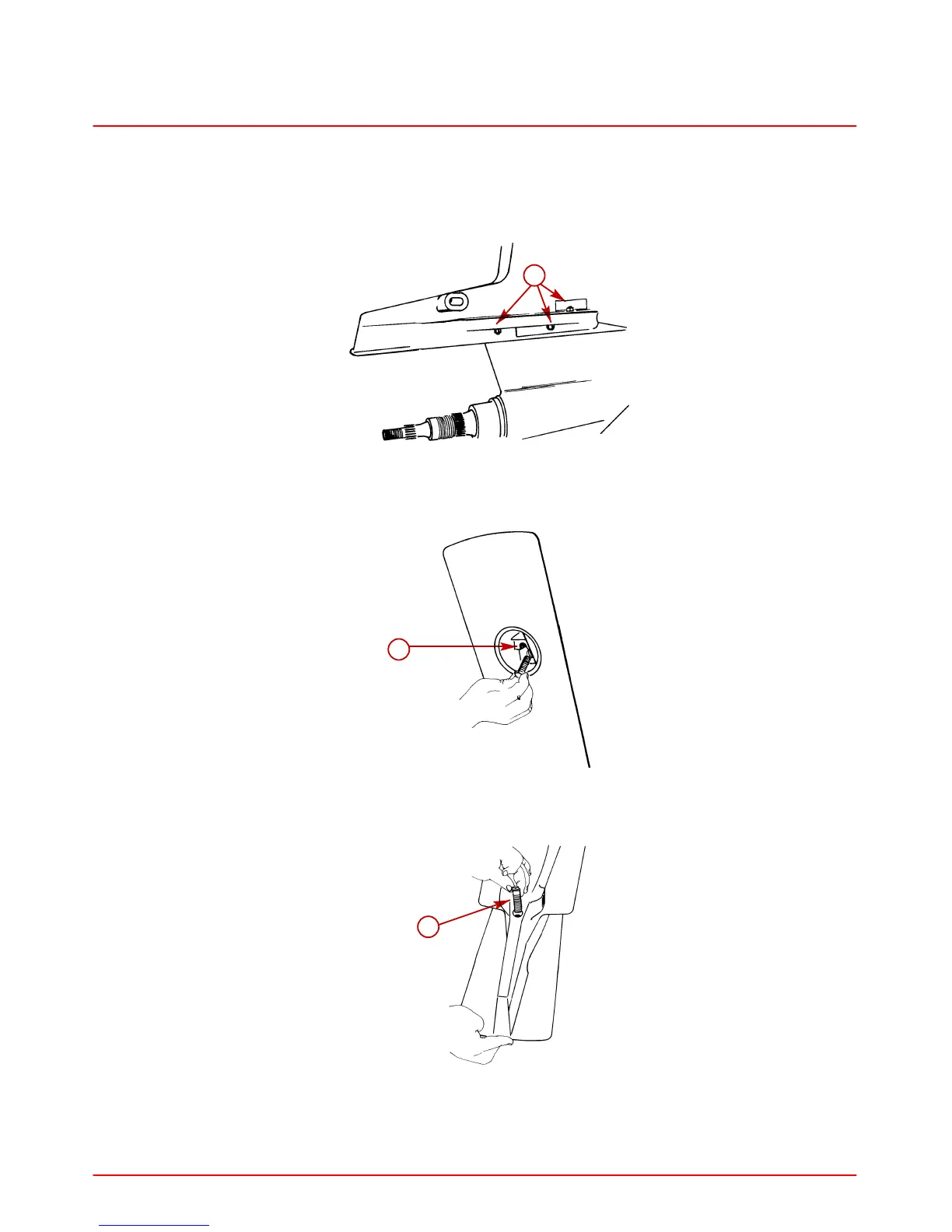

a. Lower upper drive shaft housing down onto gear housing and install 6 locknuts and
washers. Torque nuts to 35 lb-ft (47 Nm).
a
76803
a-Locknuts and Washers (6)
b. Install bolt in anode cavity. Torque to 35 lb-ft (47 Nm).
76804
a
a-Bolt
c. Install anode and torque to 20 lb-ft (27 Nm). Install rubber plug.
76832
a
a-Bolt
2. Reinstall drive unit. Refer to Section 2A - Removal, Installation and Adjustments.
3. Fill drive unit with gear lube. Refer to Section 1B - Maintenance.
