BRAVO TWO GEAR HOUSING
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 3C-29
Gear Housing Reassembly and Shimming
1. Lubricate all gears and bearings with gear lube before installing. Components must be
lubricated to obtain accurate bearing preload readings.

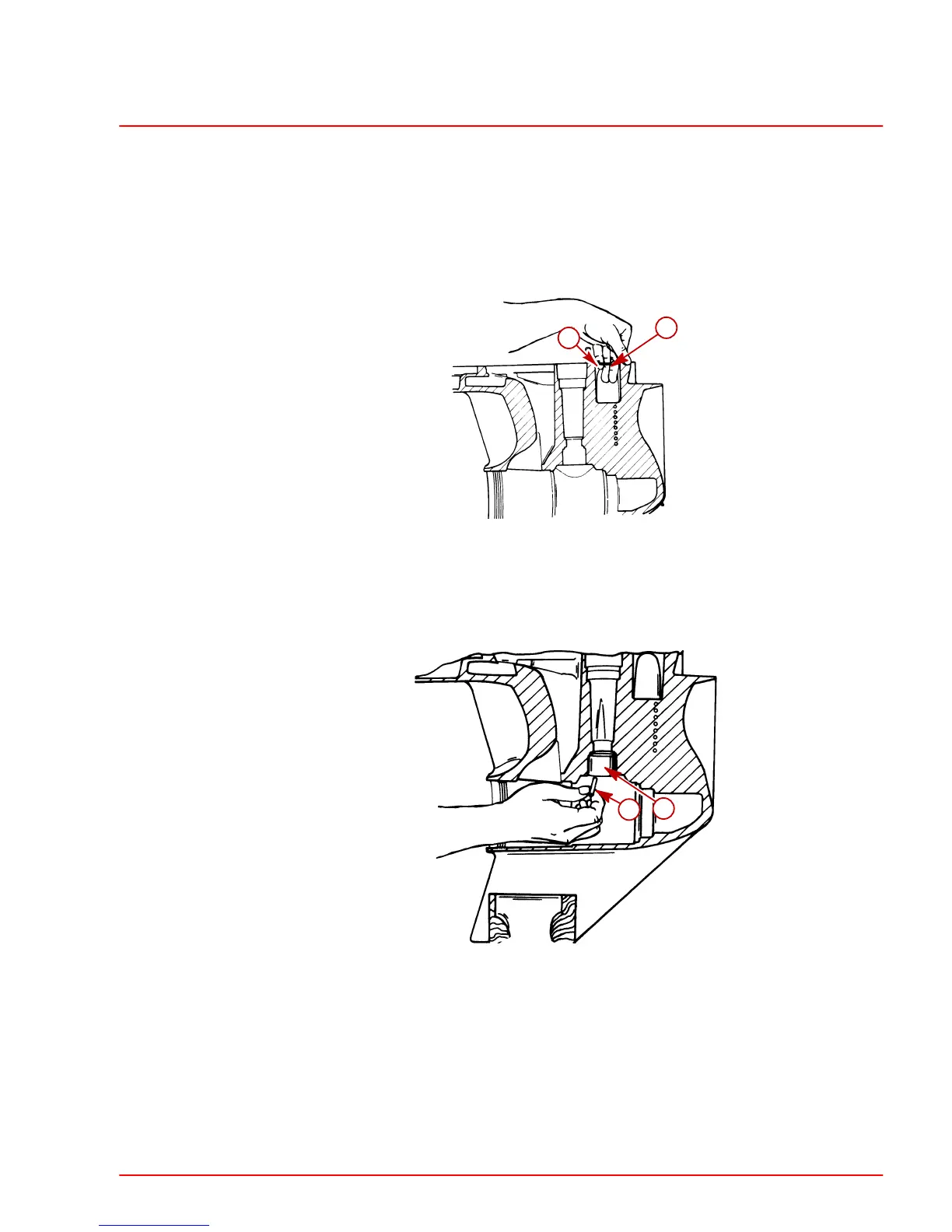

2. Install water passage O-ring and oil passage quad ring. Hold in place using 3-M
Adhesive.
22222
a
b
a-Water Passage O-Ring
b-Oil Passage Quad Ring
3. Install needle bearings into lower needle bearing casing. Use Quicksilver Needle
Bearing Assembly Lubricant to hold needle bearings in place.
22083
a
b
a-Needle Bearings
b-Needle Bearing Casing
