DRIVE SHAFT HOUSING
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 3A-51
Steel Bearing Adaptor Removal
IMPORTANT: It is not necessary to remove the steel bearing adaptor for normal drive-
shaft housing disassembly; however, in the event of gear or bearing failure the steel
bearing adaptor can be removed to aid in removal of metal chips and contamination
from oil passages.
1. Remove steel bearing adaptor using bearing adaptor socket. Heat area around steel
bearing adaptor with a torch lamp to ease removal.
a
b
77021

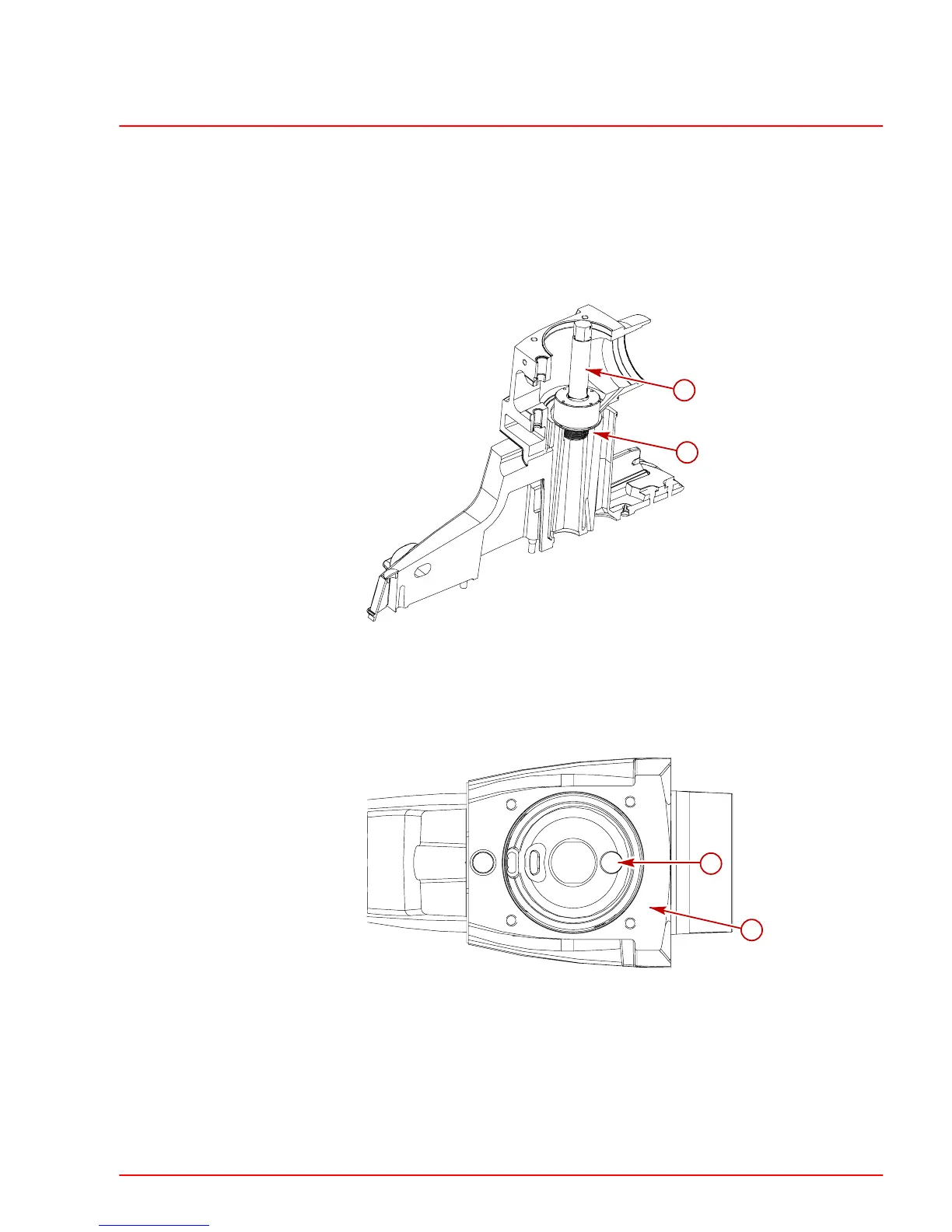

a-Steel Bearing Adaptor
b-Bearing Adaptor Socket (91-862531)
2. Remove oil passage plug.
77043
b
a
a-Drive Shaft Housing
b-Oil Passage Plug
3. Clean metal chips and contamination from oil passage.
