BRAVO TWO GEAR HOUSING SERVICE MANUAL NUMBER 28
Page 3C-8 90-863160 MAY 2000

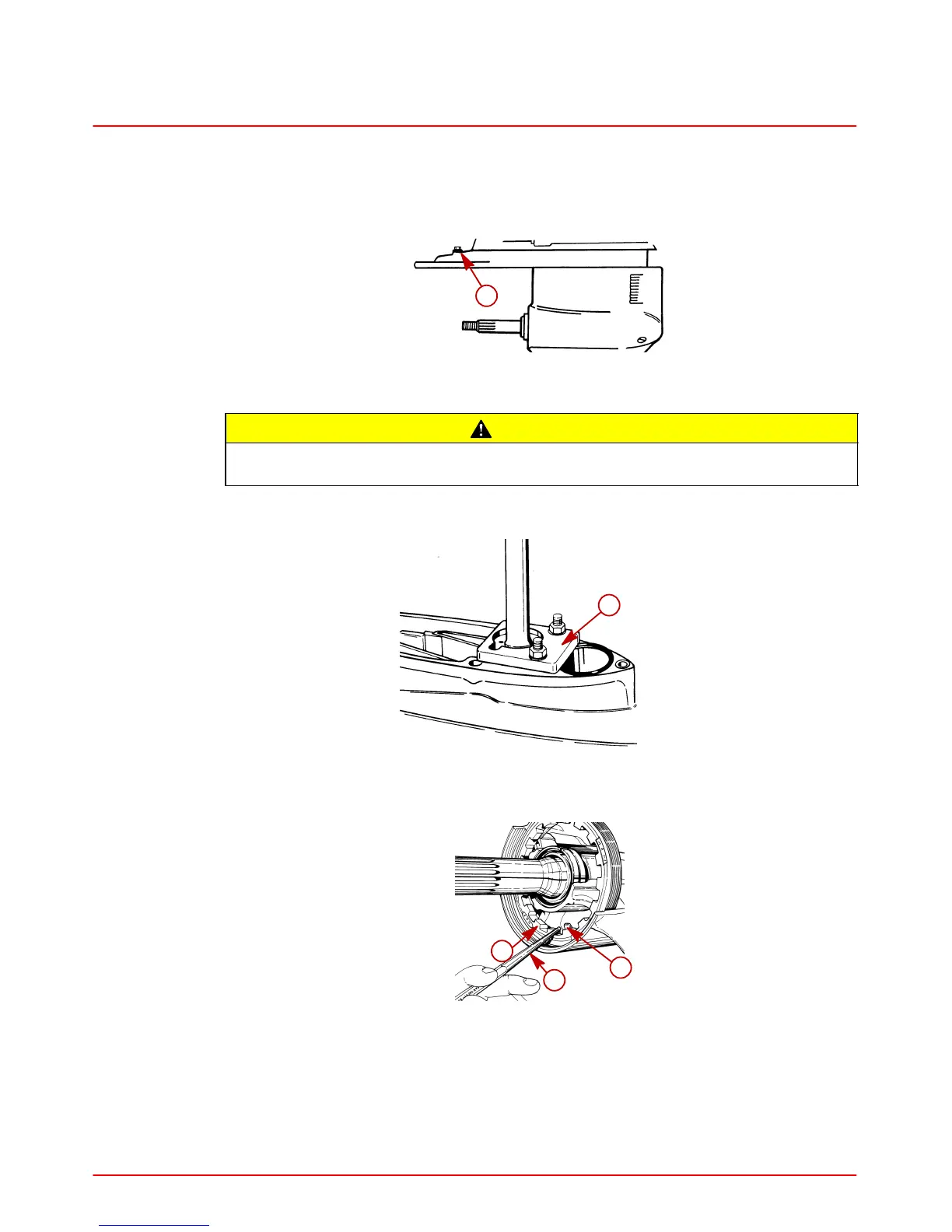

Gear Housing Disassembly
1. Remove bolt and anodic plate.
a
76801
a-Bolt
CAUTION
Clamp plate (91-43559) must be installed on gear housing when gear housing is
separated from drive shaft housing.
2. Install clamp plate, nuts and 4 washers on gear housing. Tighten securely.
22439
a
a-Clamp Plate (91-43559)
3. Bend tabs of tab washer away from bearing carrier retainer nut.
19830
a
b
c
a-Tab Washer
b-Bearing Carrier Retainer Nut
c-Punch
