BRAVO ONE GEAR HOUSING
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 3B-27

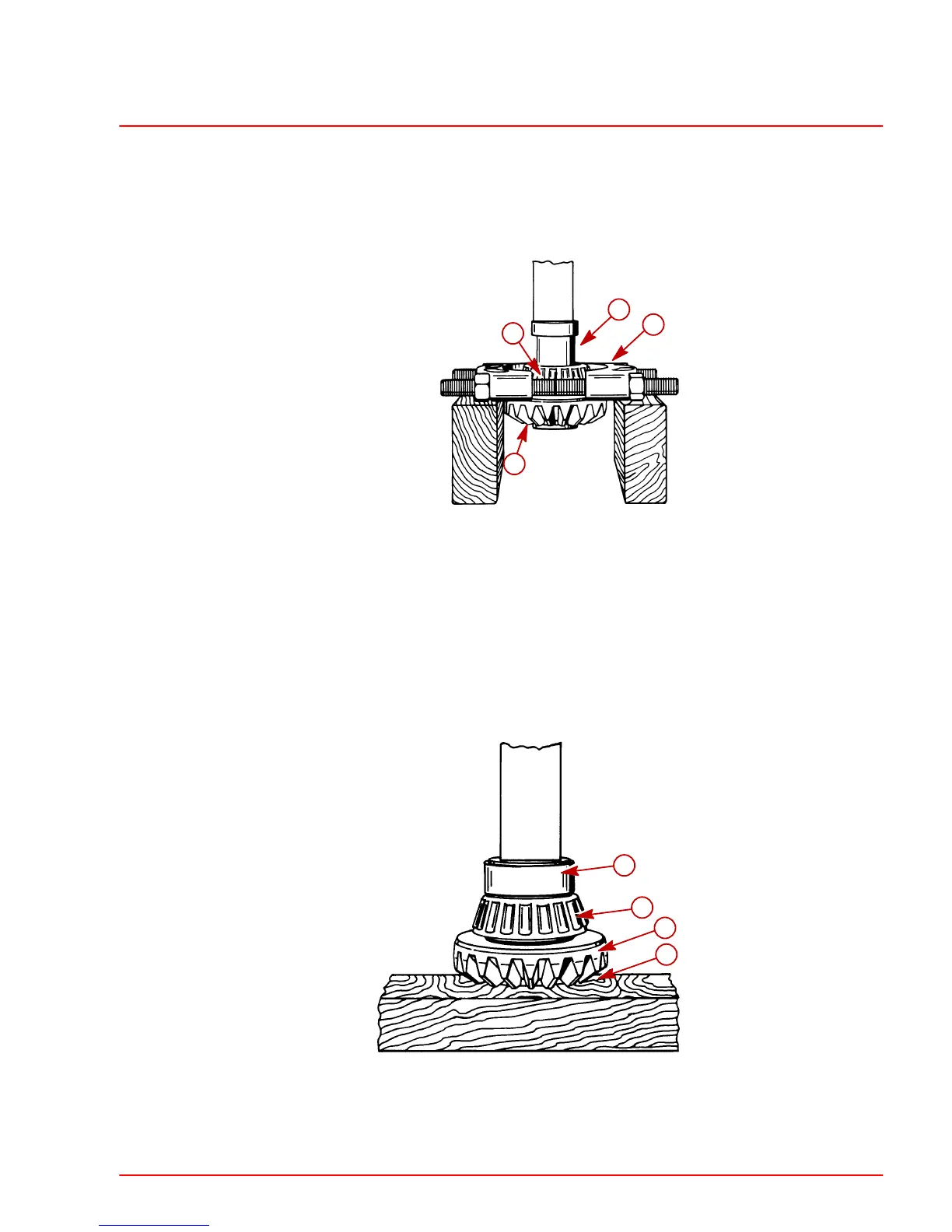

Driven Gear Bearing Removal
1. Remove bearing from driven gear using universal puller plate. Inspect both the driven
gear and the pinion gear for pitting, chipped or broken teeth and excessive or uneven
wear. Replace both gears if any of these conditions exist.
22108
a
b
c
d
a-Suitable Mandrel
b-Universal Puller Plate
c-Bearing
d-Driven Gear
Driven Gear Bearing Installation
1. Apply a light coat of gear lube to inside diameter of new bearing. Place a suitable
mandrel or old bearing race against new bearing race. Place another mandrel on face
of gear and press gear and bearing together.
22108
a
b
c
d
a-Hard Wood Or Metal Block
b-Driven Gear
c-Tapered Roller Bearing
d-Mandrel - On Inner Bearing Race
