SERVICE PROCEDURES REQUIRING MINOR DISASSEMBLY SERVICE MANUAL NUMBER 28
Page 4A-16 90-863160 MAY 2000

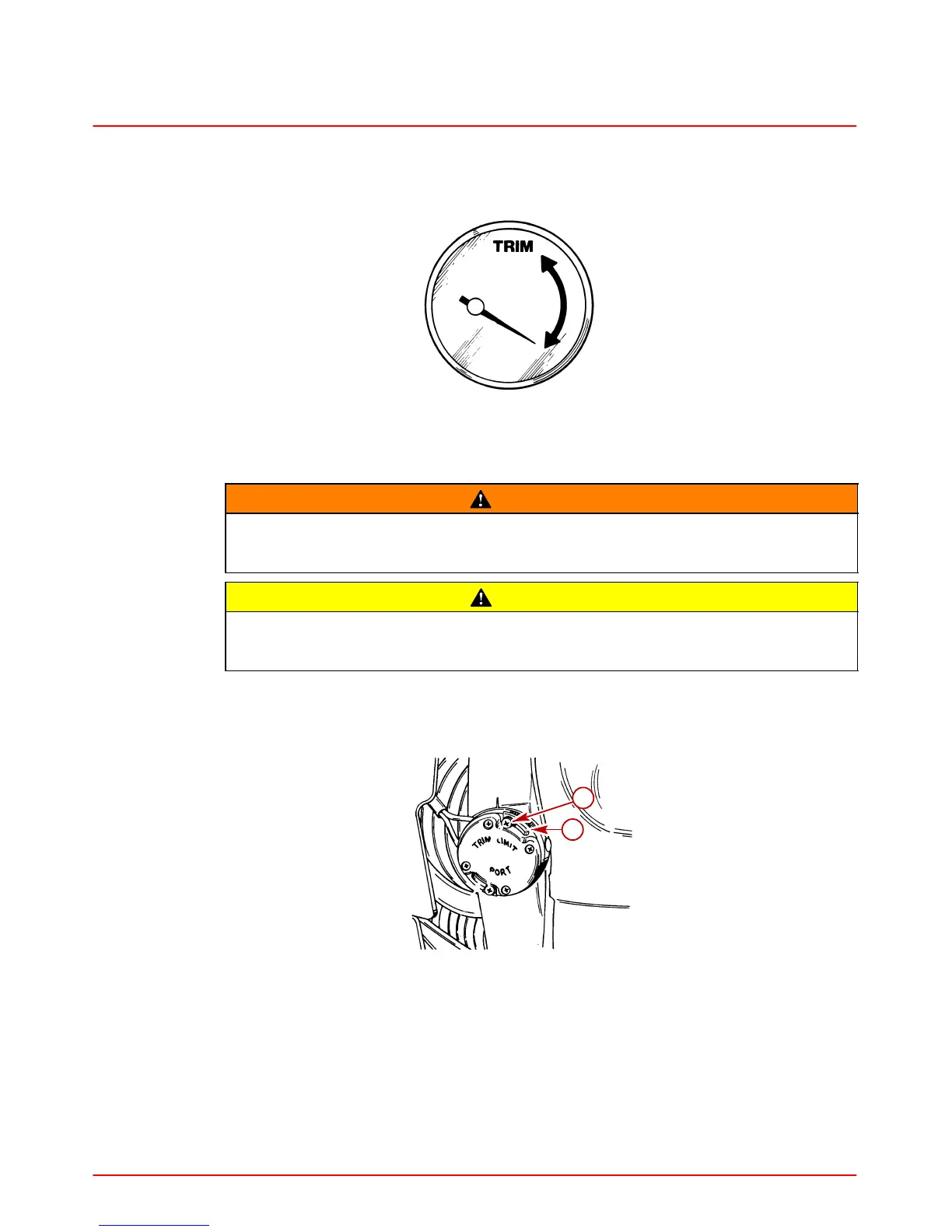

Trim Position Sender Adjustment
1. Turn ignition key to the RUN position. DO NOT START ENGINE. Rotate trim position
sender until needle is at bottom of arc on gauge.
22175
2. Tighten trim position sender retaining screws and recheck gauge.
Trim Limit Switch Adjustment
WARNING
When adjusting trim limit switch, use extreme care that engine is not started and
keep clear of area near propeller. Use care to prevent placing hands in an area where
injury could occur because of sterndrive unit movement.
CAUTION
Trim limit switch MUST BE adjusted exactly as outlined. If switch is adjusted incor-
rectly, sterndrive unit could move out beyond the gimbal ring support flanges and
cause damage to sterndrive unit.
1. Adjust trim limit switch as follows:
a. Loosen screws and turn trim limit switch clockwise to end of slots.
71221
a
b
a-Screws
b-Slots
b. Ensure that sterndrive unit is in the full DOWN/IN position.
c. Trim sterndrive unit UP/OUT. Do not use trailer switch.
