SERVICE PROCEDURES REQUIRING MINOR DISASSEMBLY
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 4A-19
Gimbal Bearing
IMPORTANT: Gimbal bearing and carrier are a matched set and must be replaced as
an assembly. Tolerance ring must be replaced any time gimbal bearing is removed.
Inspection
1. Remove sterndrive unit.
2. Reach through bell housing. Rotate gimbal bearing and check for rough spots. Pull and
push on inner race to check for side wear. Any excessive movement or roughness is
cause for replacement.
Removal
CAUTION
Do not remove gimbal bearing unless replacement is necessary, as damage to bear-
ing may result during removal.

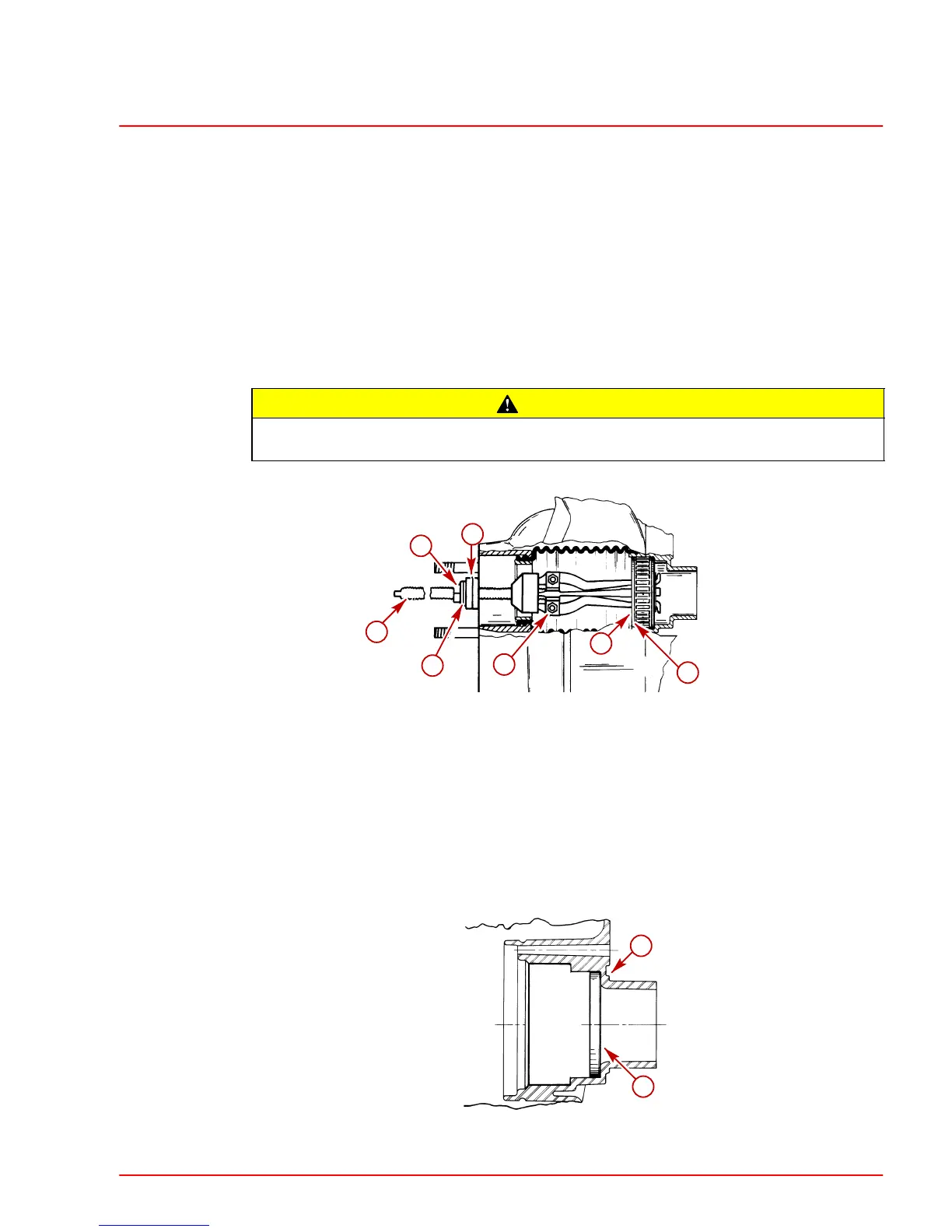

1. Remove gimbal bearing assembly.
76658
g
f
e
c
a
b
d
a-
*
Puller Shaft 91-31229
b-
*
Nut 11-24156
c-*Washer 12-34961
d-3 Plates 91-29310
e-Slide Hammer Puller
f-Gimbal Bearing Inner Race
g-Gimbal Bearing Carrier
* From Bearing Removal and Installation Tool 91-31229A7
2. Remove grease seal using a slide hammer.
22171
a
b
a-Gimbal Housing
b-Grease Seal
To Next Page
