BRAVO ONE GEAR HOUSING SERVICE MANUAL NUMBER 28
Page 3B-22 90-863160 MAY 2000
Drive Shaft Reassembly

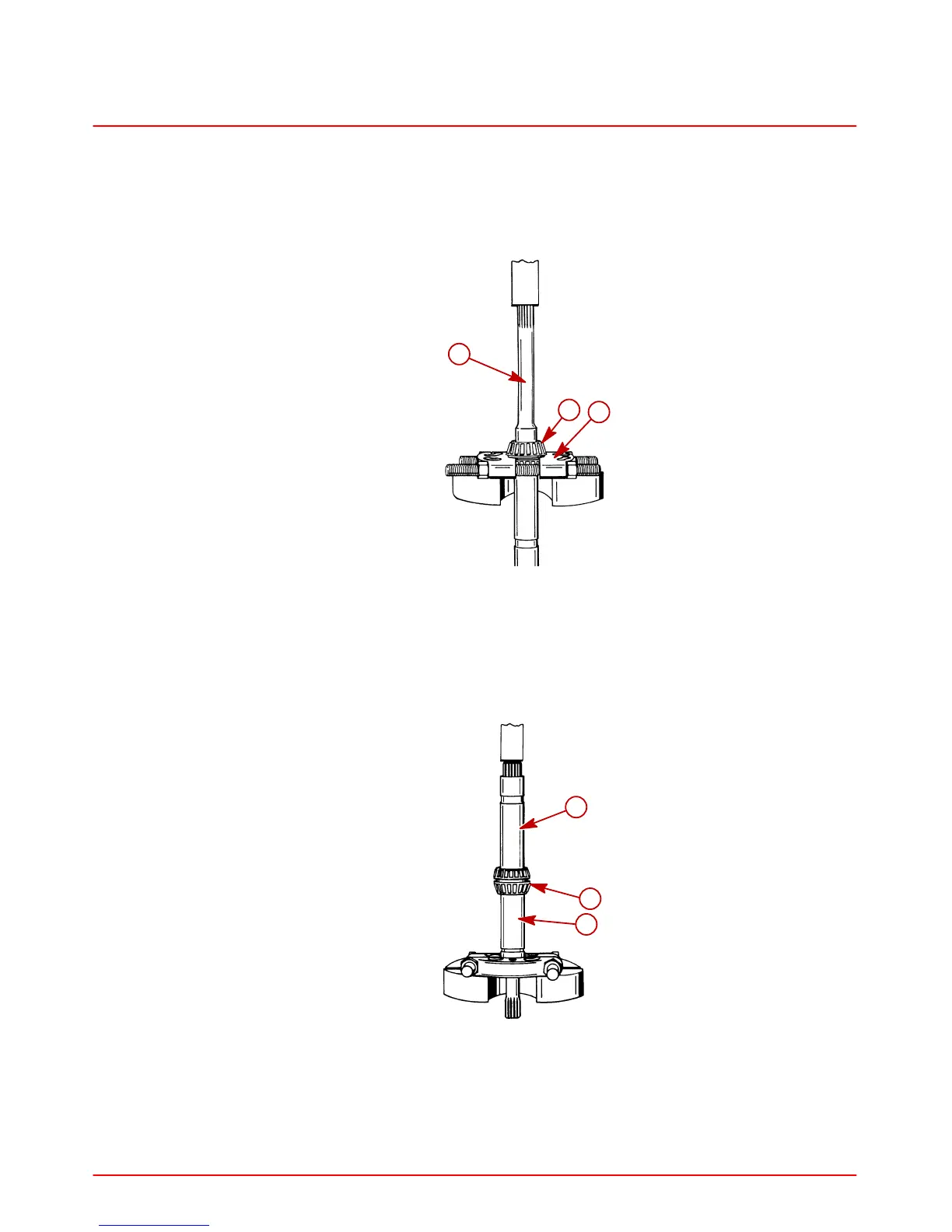

1. Lubricate inside diameter of tapered roller bearing with gear lube. Press small tapered
roller bearing onto drive shaft using universal puller plate. Ensure that smaller outside
diameter faces pinion end of shaft.
a
c
b
76873
a-Universal Puller Plate
b-Drive Shaft
c-Small Tapered Roller Bearing
2. Lubricate inside diameter of tapered roller bearing with gear lube. Press large tapered
roller bearing onto drive shaft using a suitable mandrel. Ensure that larger outside diameter
faces pinion end of shaft.
a
b
c
76874
a-Suitable Mandrel On Inner Race Of Bearing
b-Drive Shaft
c-Large Tapered Roller Bearing
