MAINTENANCE SERVICE MANUAL NUMBER 28
Page 1B-6 90-863160 MAY 2000

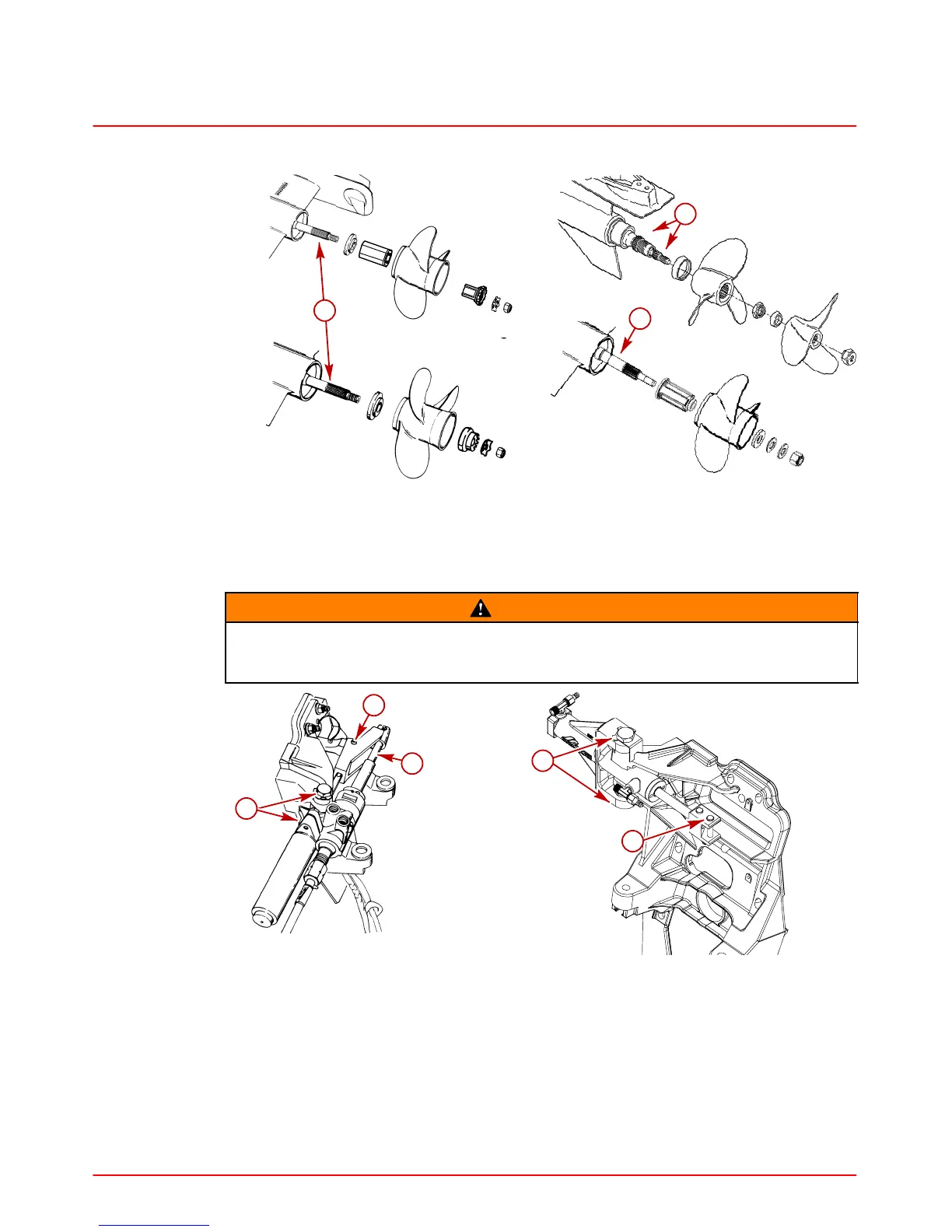

Propeller Shaft
77047
72239
a
a
a
77046
76910
Bravo One / Bravo Two Sterndrives Bravo Three Sterndrive/ Bravo XZ & XR
a-Propeller Shaft
Steering System
WARNING
Transom end of steering cable MUST BE fully retracted into cable housing when
lubricating cable. If cable is lubricated while extended, hydraulic lock of cable could
occur.
71901
b
76860
a
b
c
c
Control Valve
a-Steering Cable End
b-Pivot Point
c-Pivot Bolts
d-Adjusting Slots
To Next Page
