Mercury BRAVO Service Manual

TROUBLESHOOTING SERVICE MANUAL NUMBER 28
Page 1C-16 90-863160 MAY 2000

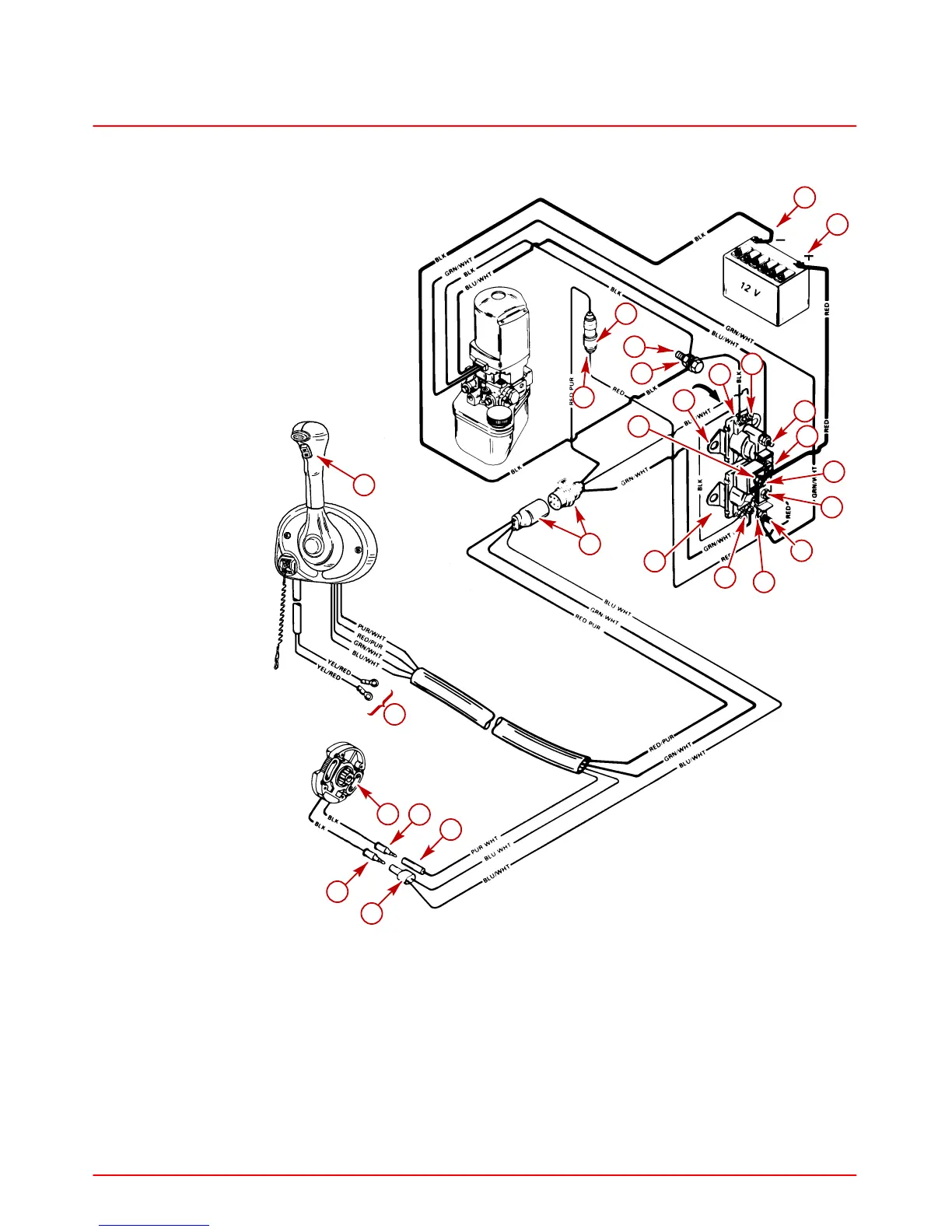

Power Trim System Wiring Diagram
BLK = BLACK
BLU = BLUE
BRN = BROWN
GRY = GRAY
GRN = GREEN
ORN = ORANGE
PNK = PINK
PUR = PURPLE
RED = RED
TAN = TAN
WHT = WHITE
YEL = YELLOW
LIT = LIGHT
DRK = DARK
b
e
g
4
5
8
h
15
16
17
14
13
18
11
12
10
a
6
7
d
2
3
9
1
c
f
77103
NOTE:Numbered callouts refer to Power Trim Electrical System Troubleshooting Chart.
a-20 Amp Fuse
b-Ground Bolt (Floor Mount)
c-UP Solenoid
d-110 Amp Fuse
e-DOWN Solenoid
f-Trim/Trailer Switch
g-Neutral Switch to Instrument Wiring Harness
h-Trim Limit Switch
