CORROSION PROTECTION - ALL MODELS SERVICE MANUAL NUMBER 28
Page 7A-10 90-863160 MAY 2000

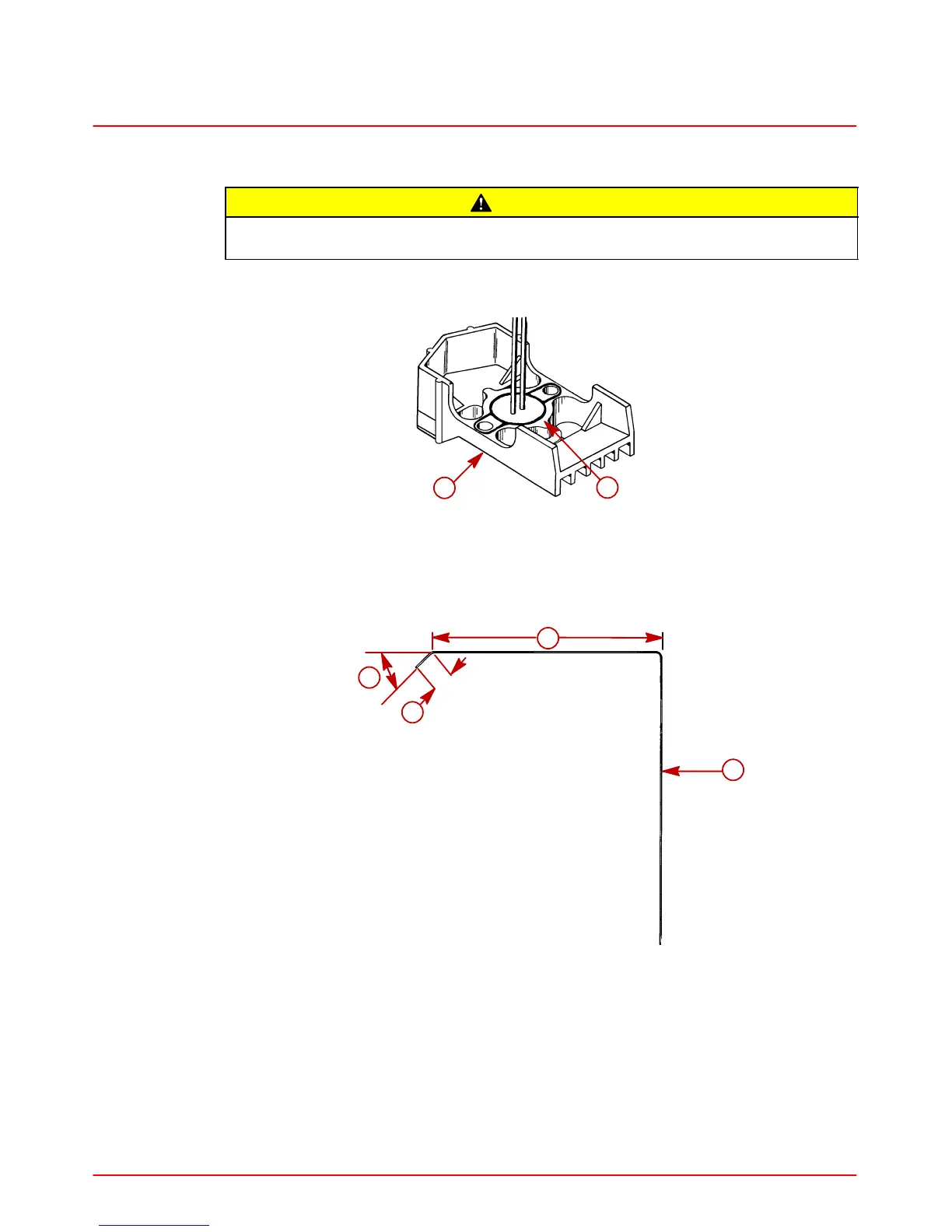

Installing Electrode Assembly
CAUTION
O-ring MUST BE properly seated in groove of electrode assembly or water leakage
into boat will result.
1. Electrodes have a factory installed rubber grommet and Do NOT require an O-ring.
71862
a
b
a-Electrode
b-Rubber Grommet
2. Form a 2 ft. (610 mm) long piece of .032 in. (6.8 mm) diameter wire to the dimensions
shown.
74106
a
b
c
d
a-2 Ft. (610 Mm) Of Approximately .032 In. (0.8 Mm) Dia. Wire
b-5 in. (123 mm)
c-45_ Angle
d-1/2 in. (13 mm)
3. Insert 45_ angle end of wire through center hole in hydraulic connector block.
To Next Page
