POWER STEERING SERVICE MANUAL NUMBER 28
Page 6A-36 90-863160 MAY 2000
5. Attach tie bar end using clevis pin (f), and cotter pin (g).
6. Spread cotter pin ends.
7. Apply Loctite 277 to exposed tie bar threads.
8. Tighten locknut against tie bar to 50 lb-ft (68 Nm).
22079
22211
e
h
g
f

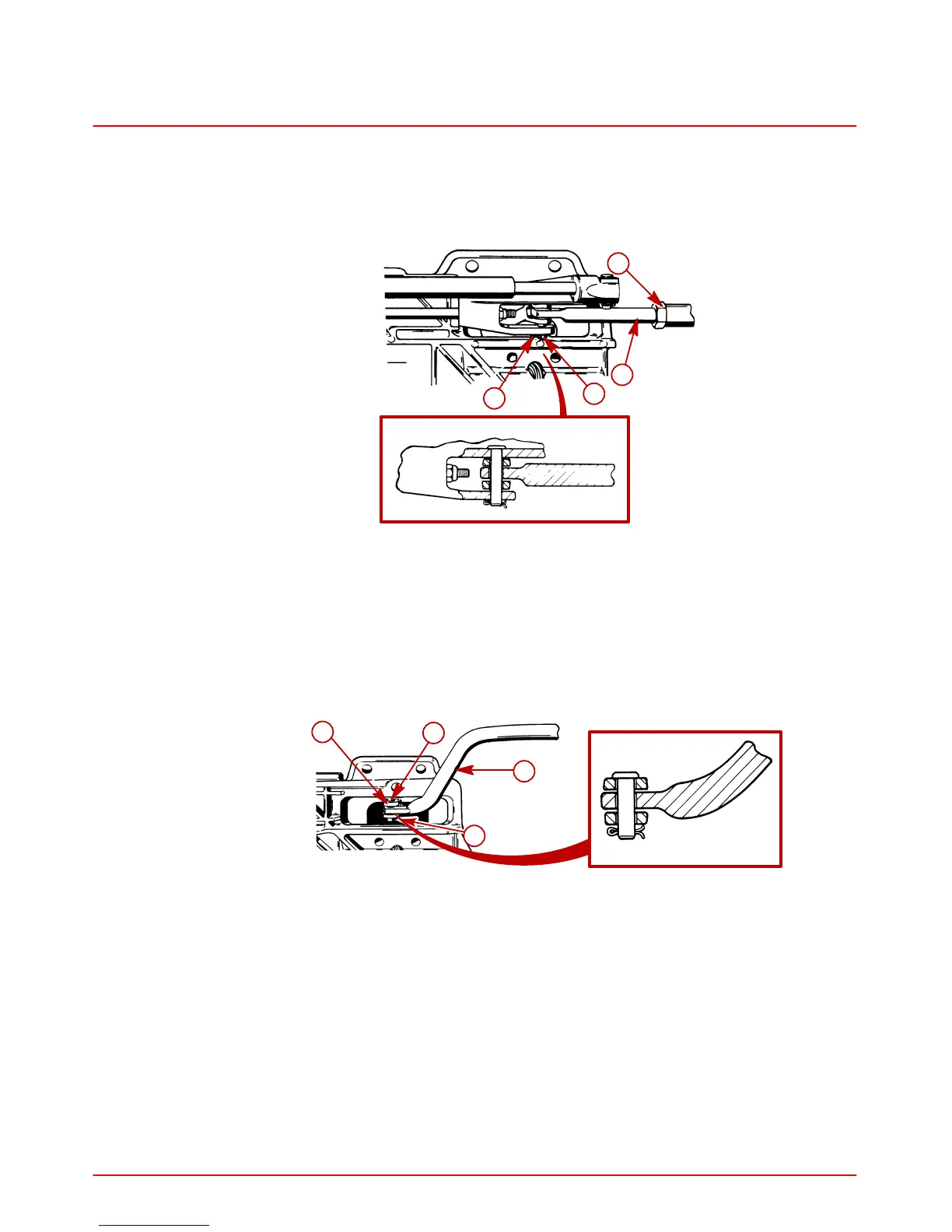

e-Adjustable End
f-Clevis Pin
g-Cotter Pin
h-Locknut
DUAL INSTALLATIONS WITH STEERING CABLE ATTACHED TO PORT POWER PACKAGE
1. Attach fixed bar end to steering lever, using clevis pin and cotter pin. Spread cotter pin
ends.
22079
22211
a
d
b
c
a-Fixed Bar End
b-Steering Lever
c-Clevis Pin
d-Cotter Pin
2. Position sterndrive units as desired and turn adjustable end out (if necessary) to align
hole in bar end with holes in steering lever and piston rod end clevis.
3. Turn adjustable end out 3 to 4 turns from this position.
4. Apply Loctite 271 to exposed tie bar threads.
5. Turn tie bar back in (3 to 4 turns) to previously aligned position.
6. Attach tie bar end using clevis pin and cotter pin.
