Mercury BRAVO

OILDYNE TRIM PUMP
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 5A-57

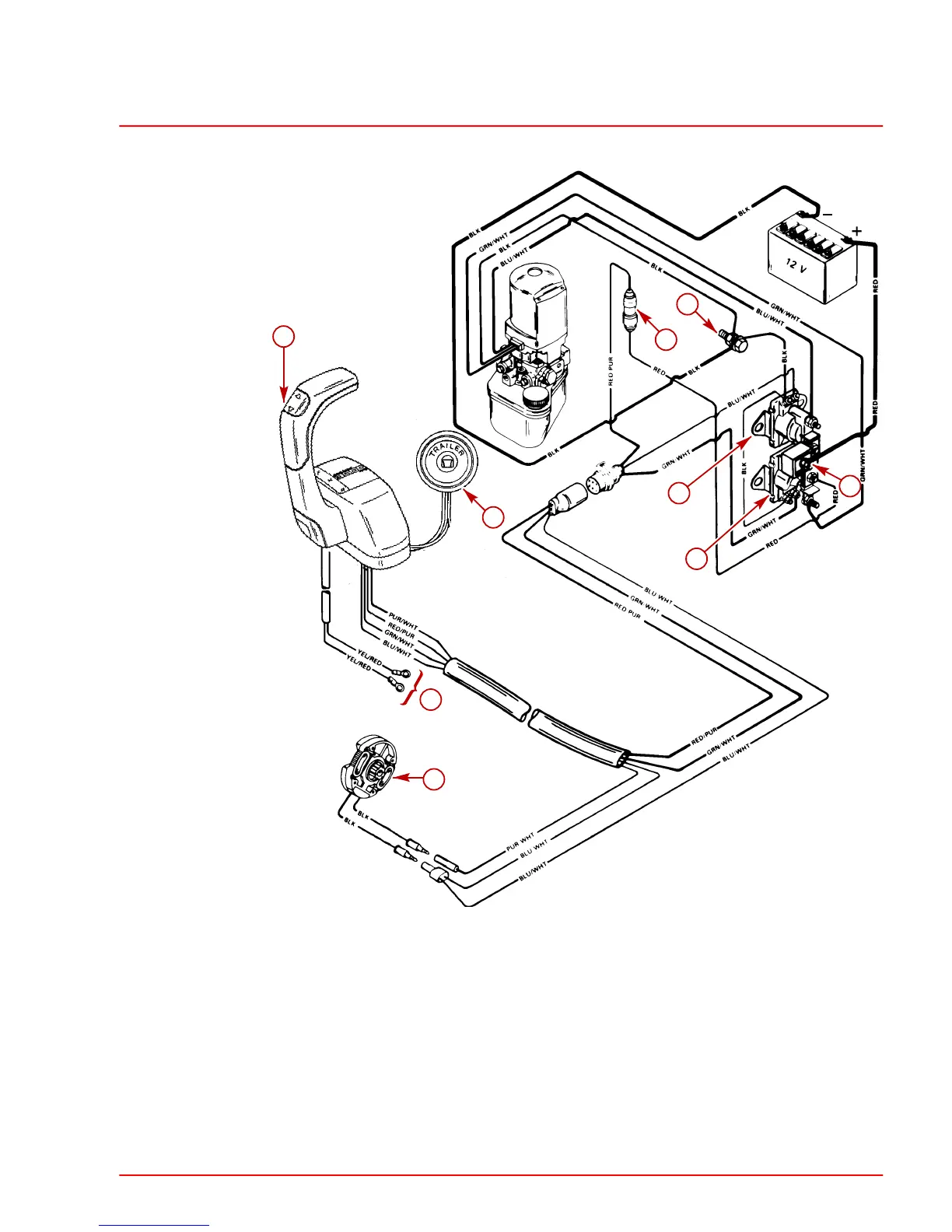

Model With Trim In Handle and Trailer Switch Separate
73962
BLK = BLACK
BLU = BLUE
BRN = BROWN
GRY = GRAY
GRN = GREEN
ORN = ORANGE
PNK = PINK
PUR = PURPLE
RED = RED
TAN = TAN
WHT = WHITE
YEL = YELLOW
LIT = LIGHT
DRK = DARK
b
a
f
g
h
i
c
d
e
a-20 Amp Fuse
b-Ground Bolt (Floor Mount)
c-Up Solenoid
d-Down Solenoid
e-110 Amp Fuse
f-Trailer Switch
g-Neutral Switch To Instrument Wiring
Harness
h-Trim Limit Switch
i-Trim Buttons
