TRIM CYLINDERS
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 5B-21
Installation
NOTE: Refer to “Special Information” at the front of this section before reinstalling trim cylin-
ders.

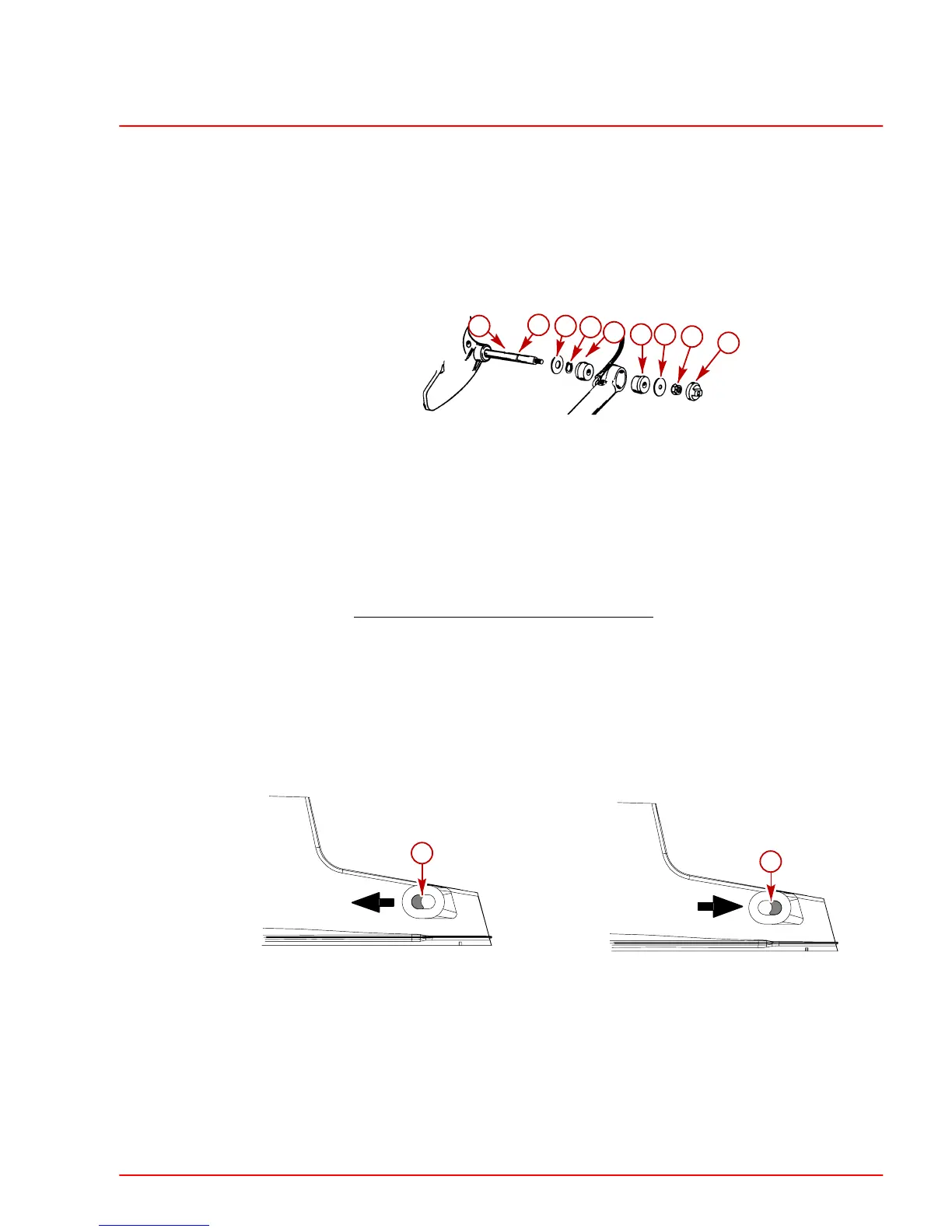

1. Install trim cylinder forward mounting hardware as shown.
2. Coat anchor pin threads with 2-4-C Marine Lubricant with Teflon (to prevent threads
from galling).
3. Hand thread locknuts onto pin. Do NOT tighten at this time.
71489
a b
c
d
e
e
f
g
h
a-Anchor Pin (1)
b-Slots (2)
c-Flat Washer (Large I.D.) (2)
d-Snap Rings (2)
e-Bushings (4)
f-Washers (Small I.D.) (2)
g-Locknut (2)
h-Plastic Cap (2)
IMPORTANT: On Bravo One, Two, and Three Models,
the Trim-In Limit Insert , must
be properly positioned before installing the trim cylinder anchor pin in the following
steps.
NOTE: Ensure that the Trim-In Limit Insert is reinstalled in the same position that is was in
prior to removal of the sterndrive unit. If you are not sure of it’s original position, contact the
boat manufacturer for their recommendation. Refer to Special Information at the front of this
section before reinstalling the Trim-In Limit Insert.
4. Ensure that the Trim-In Limit Insert is positioned as shown for the appropriate Bravo
model.
75157
75158
a
a
Bravo One and Two (Positioned Forward) Bravo Three (Positioned Aft)
a-Trim-In Limit Insert
IMPORTANT: The position of the Trim-In Limit Insert on the Bravo Three sterndrive
unit should only be changed after the boat has been properly tested. Contact the boat
manufacturer if you are not sure of the original position for a particular boat applica-
tion.
5. Install trim cylinder aft mounting hardware as shown.
To Next Page
