Mercury BRAVO Service Manual

TRIM CYLINDERS SERVICE MANUAL NUMBER 28
Page 5B-22 90-863160 MAY 2000
6. Coat anchor pin threads with 2-4-C Marine Lubricant with Teflon to prevent threads from
galling.
7. Hand thread locknuts onto anchor pin. Install plastic caps.
22029
a
b
c
d
c
e
f

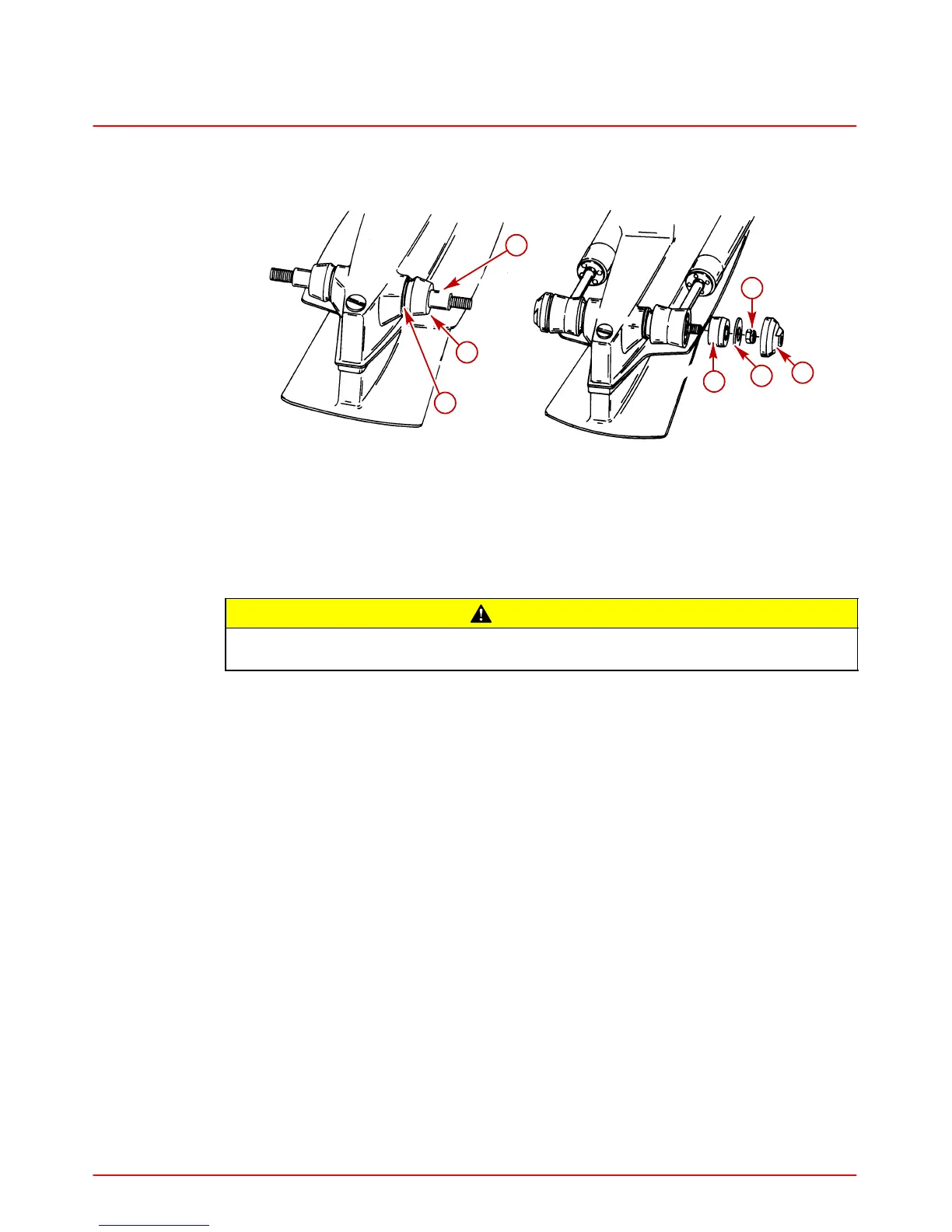

a-Aft Anchor Pin (Shorter)
b-Washers (2) - Large I.D.
c-Bushings
d-Washers (2) - Small I.D.
e-Locknuts (2)
f-Plastic Caps (2)
CAUTION
All 4 anchor pin locknuts must be tightened as described following or damage to
sterndrive unit may result from drive unit moving too far inward.
8. Tighten 4 anchor pin locknuts until nuts and washers bottom out against anchor pin
shoulder.
9. Reconnect trim hoses after air bleeding power trim cylinders and hoses following proce-
dures outlined in Section 5A.
