OILDYNE TRIM PUMP
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 5A-25
Hydraulic Repair
Disassembly

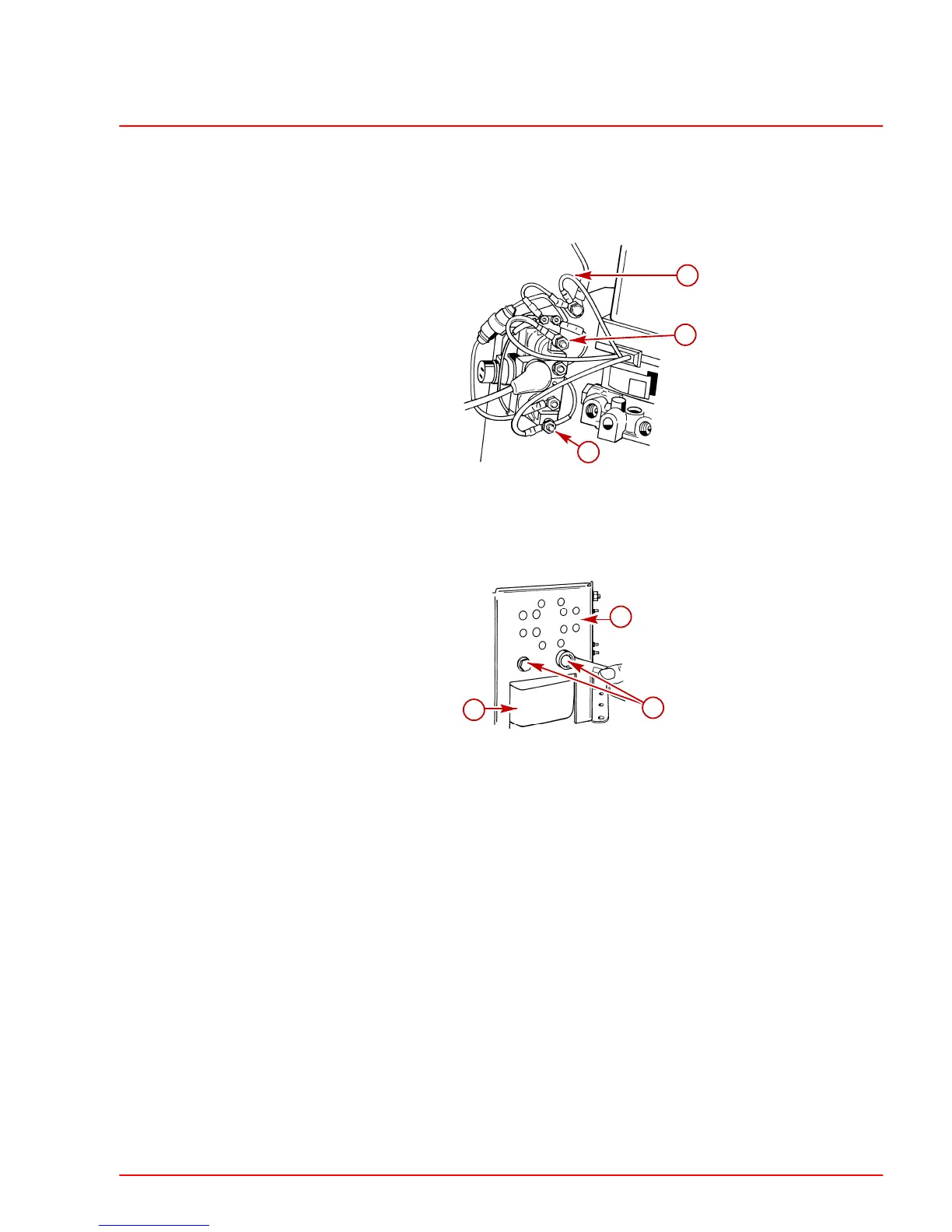

1. Disconnect the trim motor wires.
70359
c
a
b
a-BLUE/WHITE Motor Wire
b-GREEN/WHITE Motor Wire
c-BLACK Ground Wire
2. Remove the mounting bolts and trim pump from the floor bracket.
22548
b
c
a
a-Trim Pump
b-Floor Bracket
c-Mounting Bolts
