Mercury BRAVO Service Manual

BRAVO TWO GEAR HOUSING
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 3C-15
Drive Shaft Disassembly
NOTE: Bearing assembly must be replaced if removed from drive shaft. Tapered roller bear-
ings are damaged when removing.

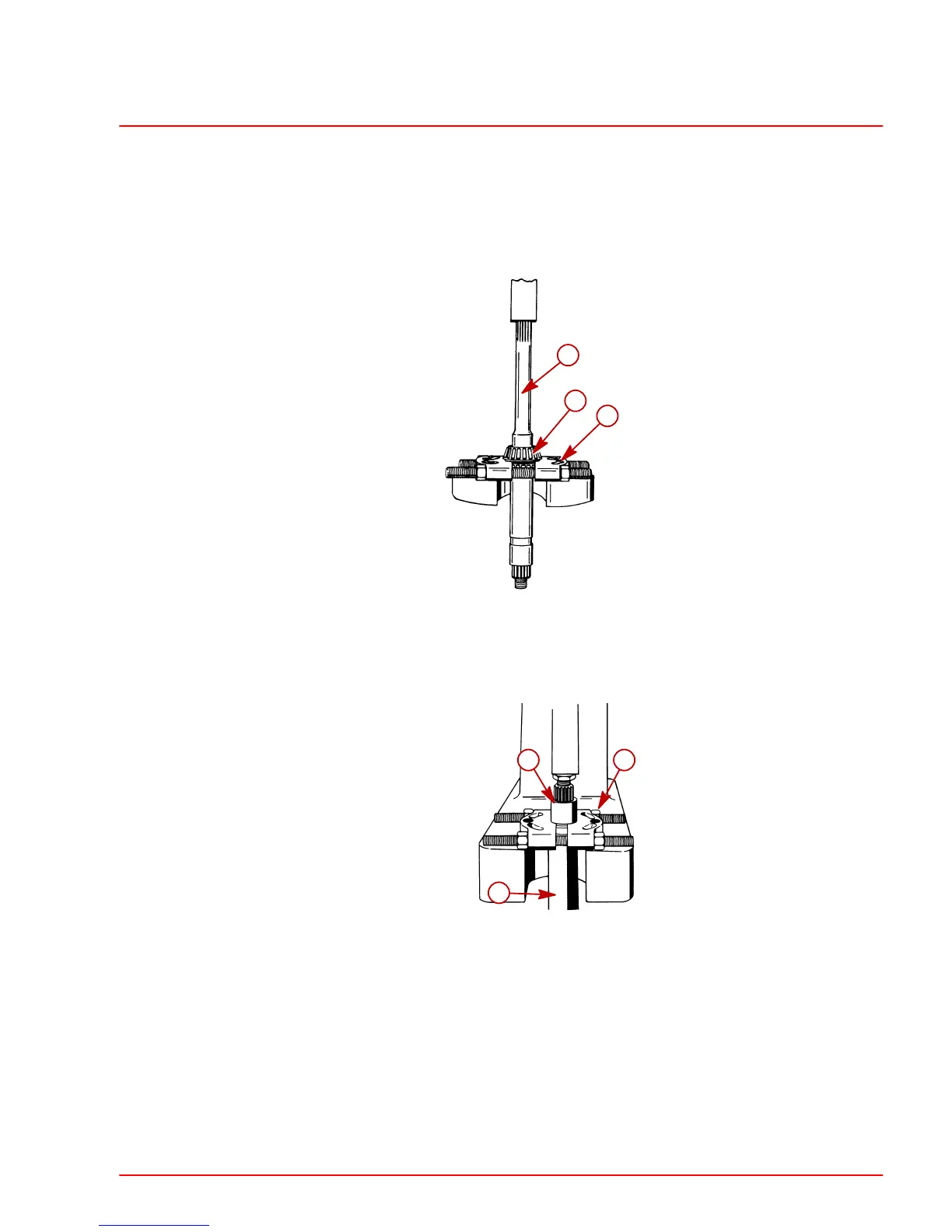

1. Press tapered roller bearing from shaft using universal puller plate to support bearing
on bearing inner race. Remove second tapered roller bearing in same manner.
22109
a
b
c
a-Drive Shaft
b-Bearing
c-Universal Puller Plate (91-37241)
2. Press drive shaft pinion bearing inner race from drive shaft, using universal puller plate.
24210
a
b
c
a-Drive Shaft
b-Pinion Bearing Inner Race
c-Universal Puller Plate (P/N 91-37241)
