DRIVE SHAFT HOUSING SERVICE MANUAL NUMBER 28
Page 3A-48 90-863160 MAY 2000

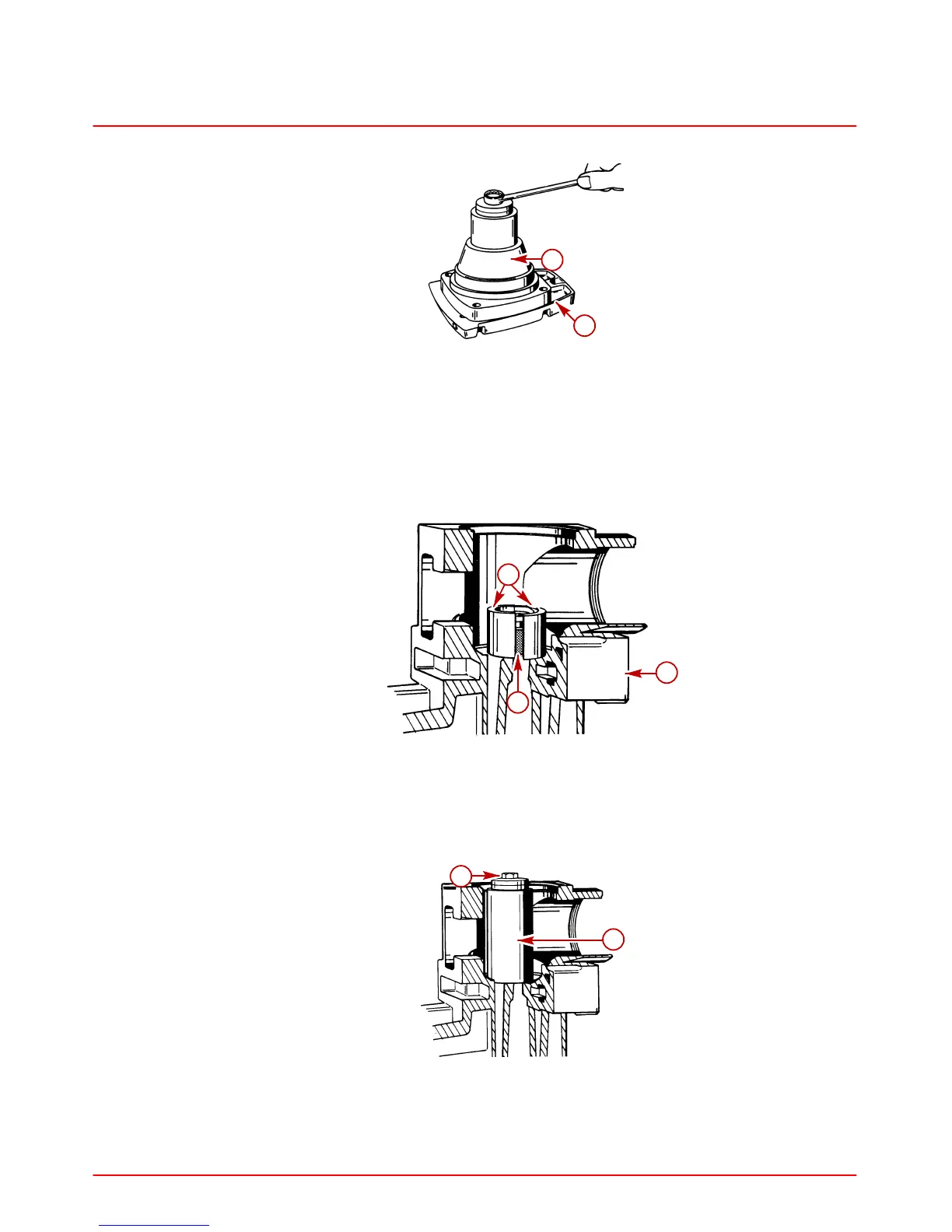

3. Install driver guide as shown.
22082
a
b
a-Driver Guide (92-90244A1)
b-Top Cover
4. Remove sleeve by rotating bolt clockwise.
Bearing Sleeve Removal (Drive Shaft Housing)
1. Place puller jaws around sleeve.
22219
a
b
c
a-Drive Shaft Housing
b-Pull Jaws (2 Halves) (91-90244A1)
c-Sleeve
2. Position puller guide over jaws and install bolt.
22263
a
b
a-Puller Guide (91-90244A1)
b-Puller Bolt (91-90244A1)
To Next Page
