BRAVO TWO GEAR HOUSING
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 3C-17

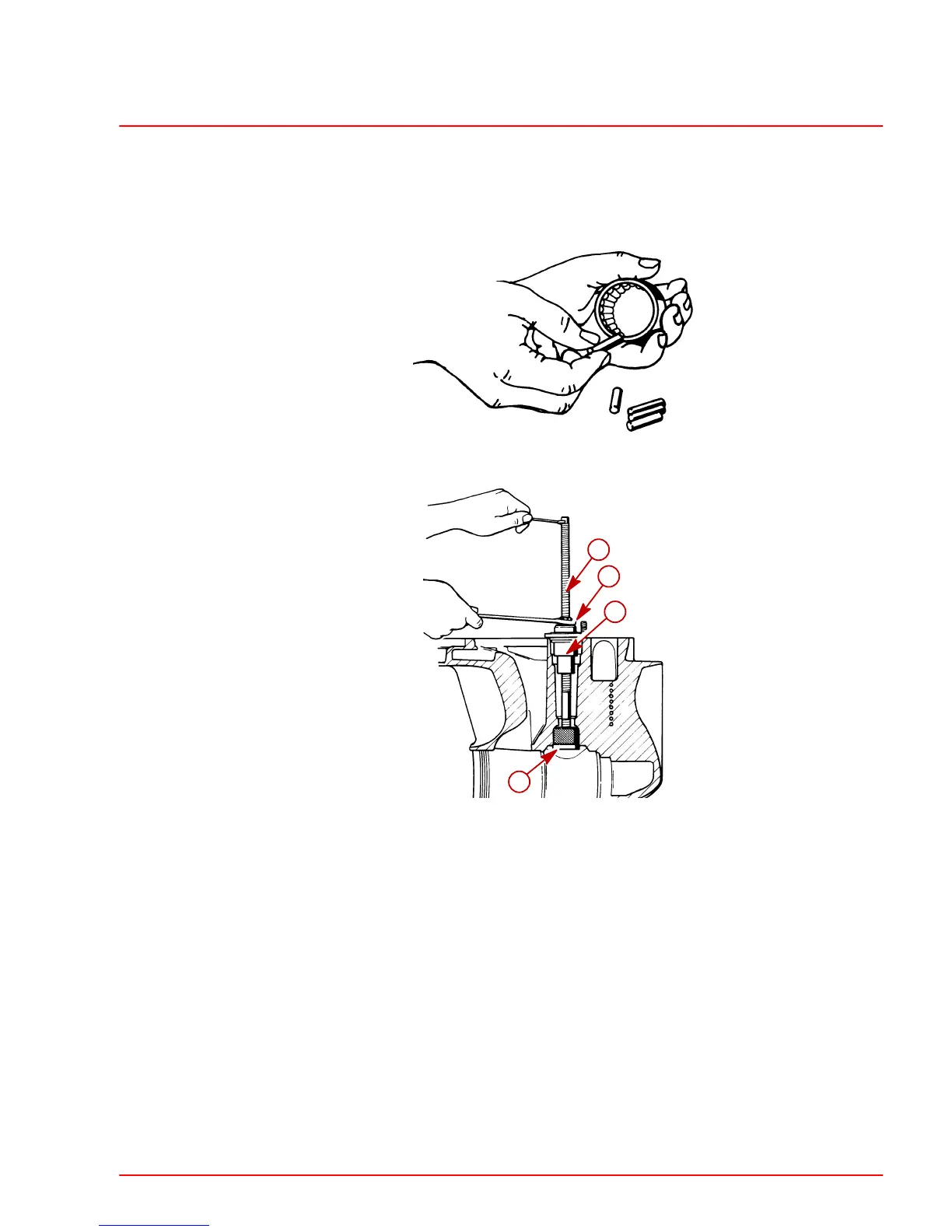

Pinion Bearing Installation
1. Install needles in casing. Use Needle Bearing Assembly Lubricant to help keep needles
in place. Position bearing assembly over bearing installation tool with number on
bearing casing facing up. Coat casing outside diameter with gear lube.
22219
2. Install pinion bearing using tools as shown. Use the bearing driver as a pilot.
22222
a
b
c
d
a-Bearing Driver (91-813653)
b-Puller Shaft (91-31229)
c-Washer And Nut
d-Driver (91-89867T)
