OILDYNE TRIM PUMP SERVICE MANUAL NUMBER 28
Page 5A-50 90-863160 MAY 2000

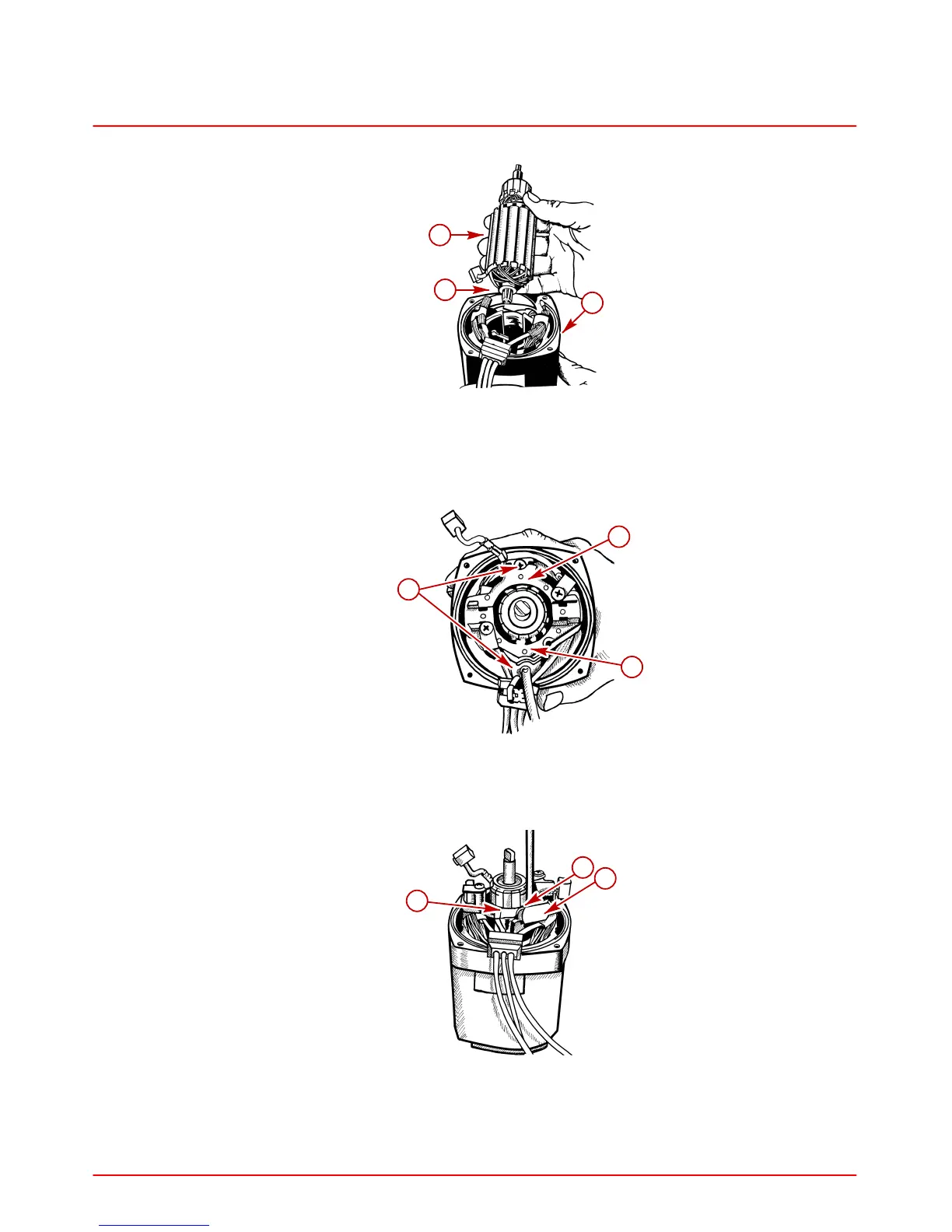

3. Install the thrust washer on the armature and install the armature into the motor housing.
22499
c
a
b
a-Armature
b-Thrust Washer
c-Motor Housing
4. Install the brush assembly mounting bracket. Tighten the screws securely.
22636
a
a
b
a-Brush Assembly Mounting Bracket
b-Screws
5. Install the thermal switch and connect the black wire. Do NOT overtighten the screw.
22637
a
b
c
a-Thermal Switch
b-Screw
c-Black Wire Connector
