Mercury BRAVO Service Manual

OILDYNE TRIM PUMP
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 5A-51

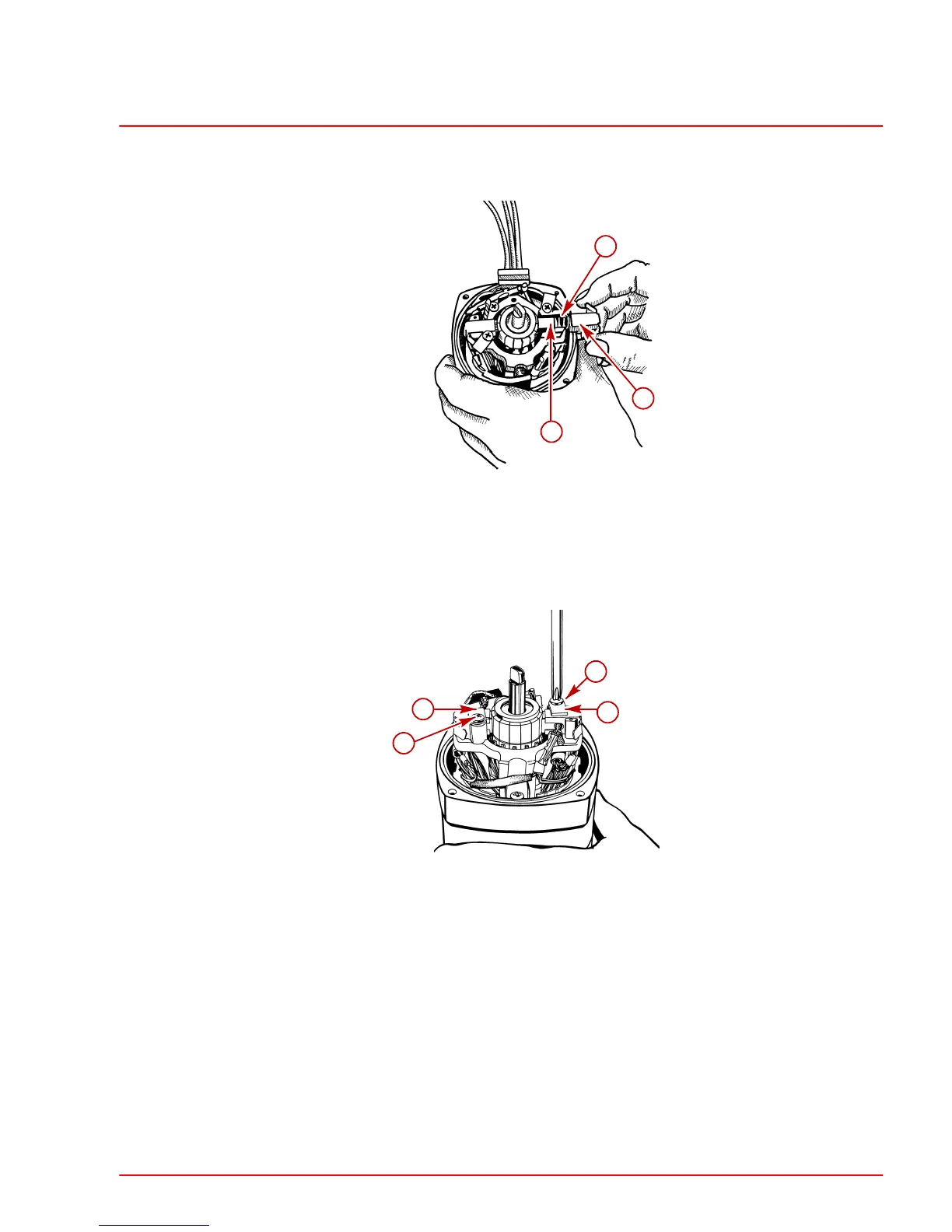

6. Install the springs and brushes in the brush holders.
22638
b
a
c
a-Brush Holders
b-Springs
c-Brushes
7. Position the brush holders and secure them with the brush hold down arms. Do NOT
overtighten the screws.
22648
a
b
a
b
a-Brush Hold Down Arms
b-Screws
