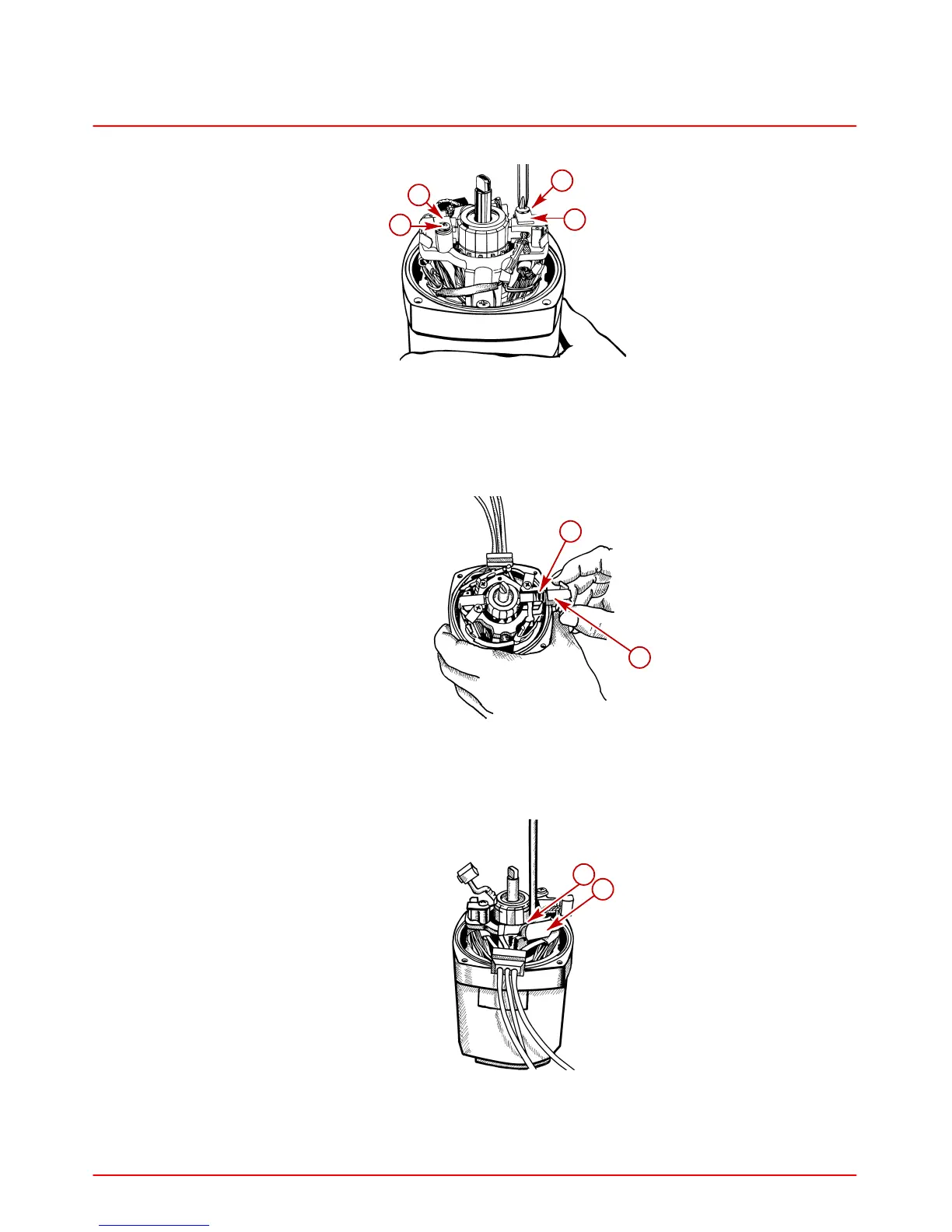

4. Loosen the brush hold down arms.
22648
a
b
b
a
a-Brush Hold Down Arms
b-Screws
IMPORTANT: Use care in removing brush holders so as not to lose springs.
5. Remove the brush holders and springs.
22638
b
a
a-Brush Holder
b-Spring
6. Remove the thermal switch and brush assembly.
22637
a
b
a-Thermal Switch and Brush
b-Screw
