COMPACT HYDRAULIC STEERING
SERVICE MANUAL NUMBER 28
Page 6B-590-863160 MAY 2000
2. Install steering cylinder assembly as follows:
a. Position steering cylinder assembly so that upper and lower pivot bolts (with tab
washers and spacers) can be threaded by hand into transom plate.
b. Ensure that tab washer tangs straddle the ridge on transom plate.
c. Ensure steering cylinder assembly pivots freely.
d. Torque pivot bolts to 25 lb-ft (34 Nm). Bend washer tabs against corresponding flats
on bolt heads.
NOTE: It may be necessary to tighten pivot bolts further to align flats on bolt with tabs on
tab washer.

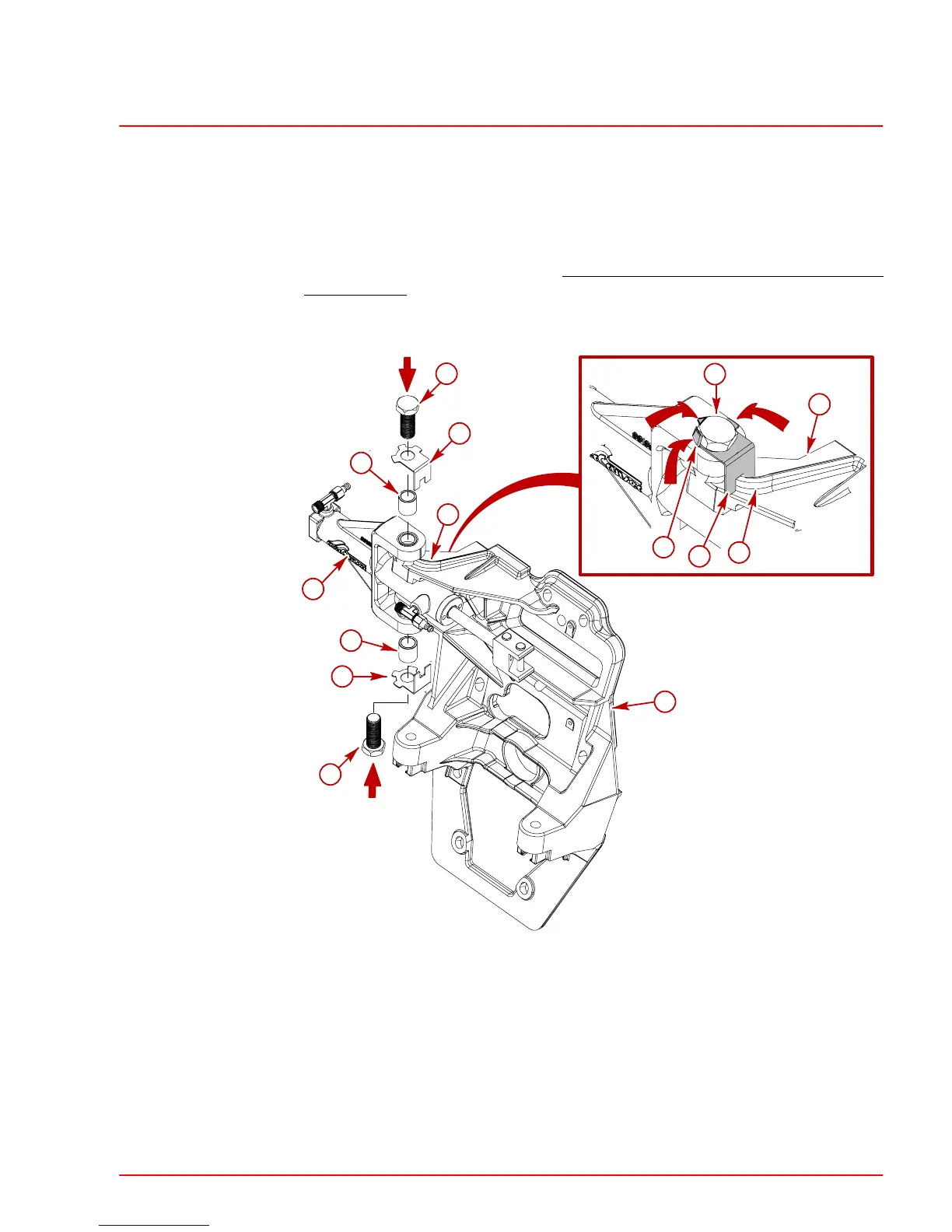

76087
a
b
b
c
c
b
d
e
d
f
f
g
g
h
a-Steering Cylinder Assembly
b-Pivot Bolt
c-Tab Washer
d-Spacer
e-Tab
f-Transom Plate
g-Ridge on Transom Plate
h-Tab Washer Tangs (Straddle Ridge)
