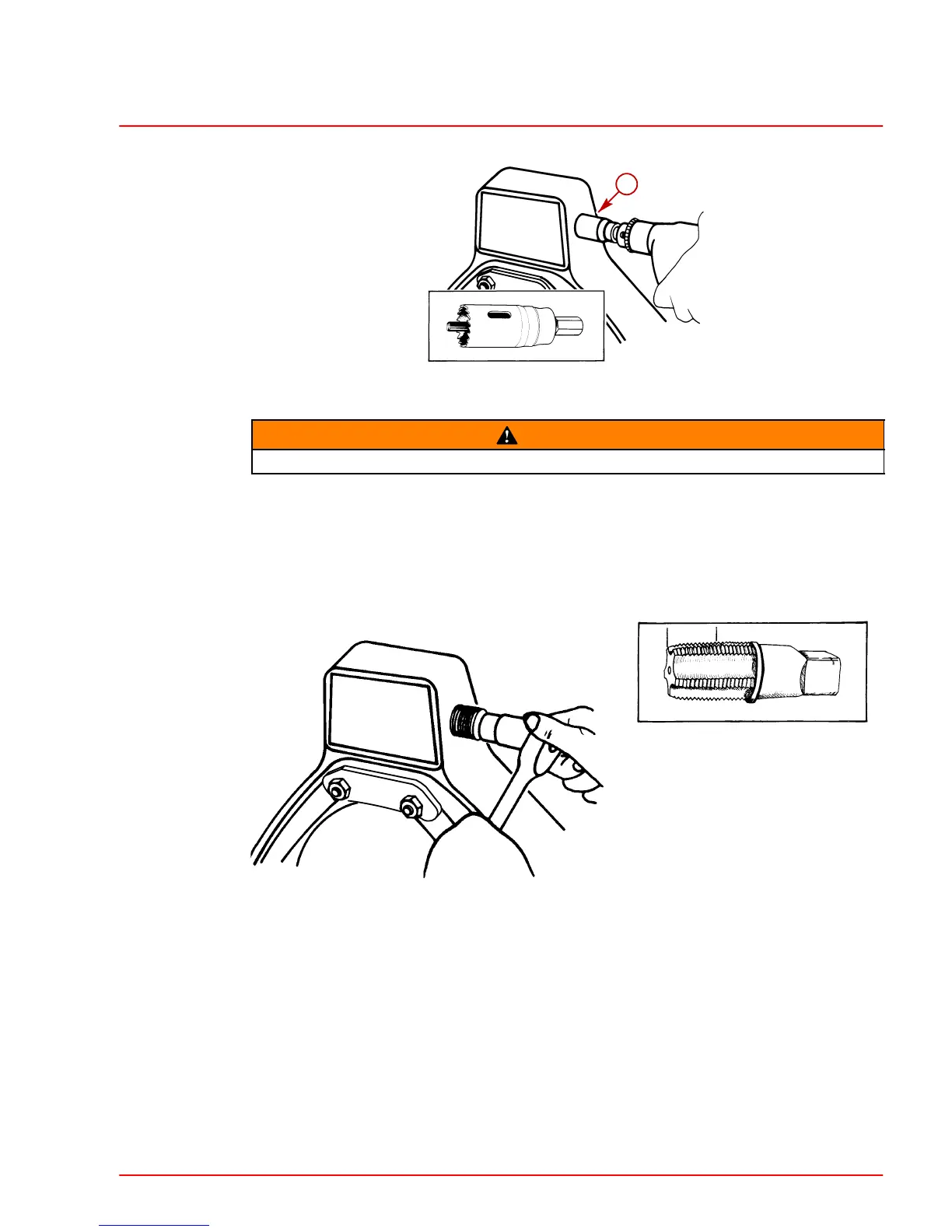

3. Cut holes in gimbal housing (port and starboard) using 1-1/8 in. hole saw and pilot rod.
70153
22652
a
a-Hole Saw
WARNING
Always wear safety glasses when using compressed air.
4. Remove metal chips with compressed air.
5. Mark 1 in. pipe tap with a piece of tape, 1-1/8 in. (28 mm) from end of tap.
6. Coat pipe tap with grease to aid in picking up metal chips.
7. Cut threads in access holes.
8. Stop cutting when the edge of the tape reaches the gimbal housing.
75904
22757
