DRIVE SHAFT HOUSING
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 3A-21

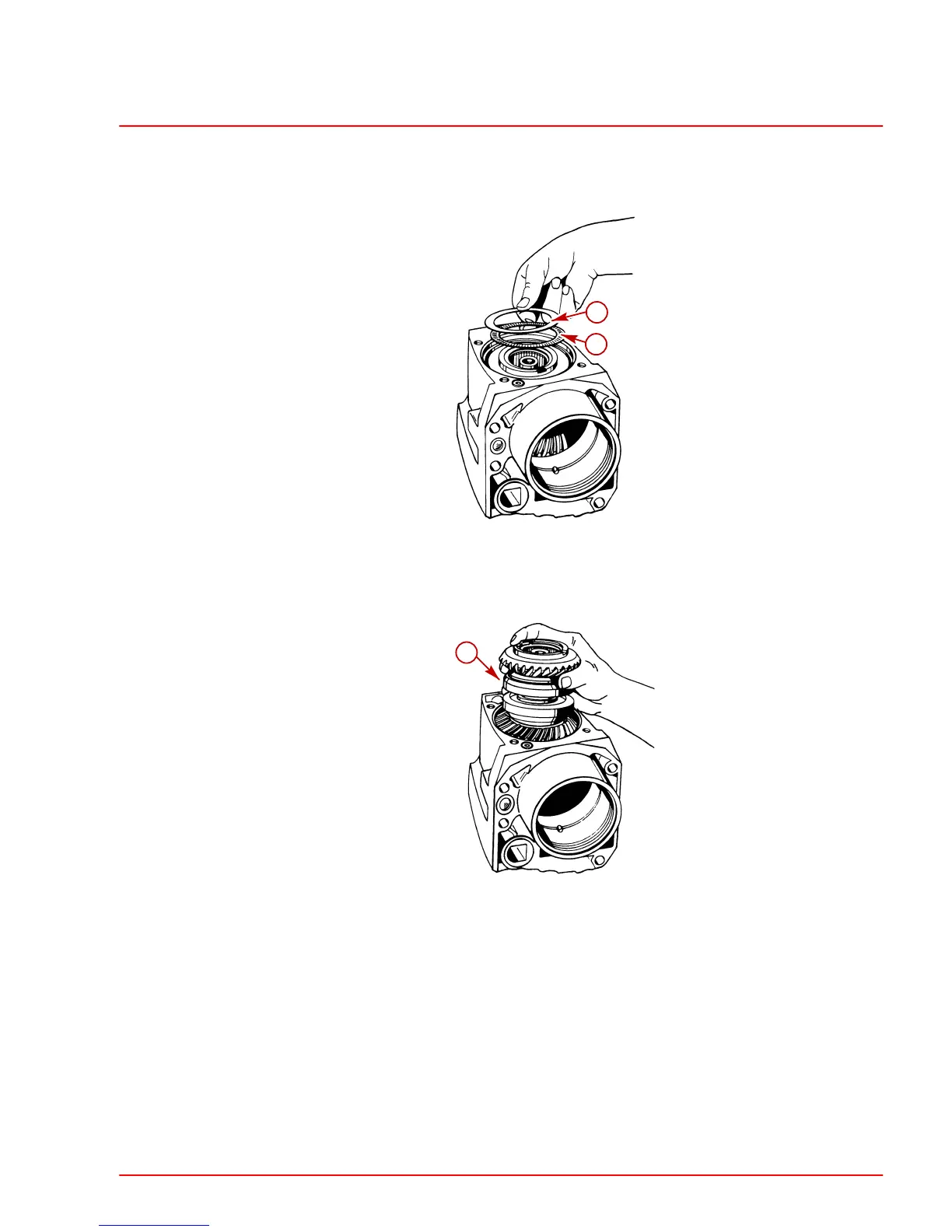

10. Remove upper thrust race (shim) and thrust bearing.
NOTE: In steps 10 and 12, be sure to note proper order and position of thrust races, thrust
bearings and clutch assembly for later reassembly.
76841
a
b
a-Upper Thrust Race
b-Thrust Bearing
11. Remove clutch and gear assembly.
76842
a
a-Clutch and Gear Assembly
