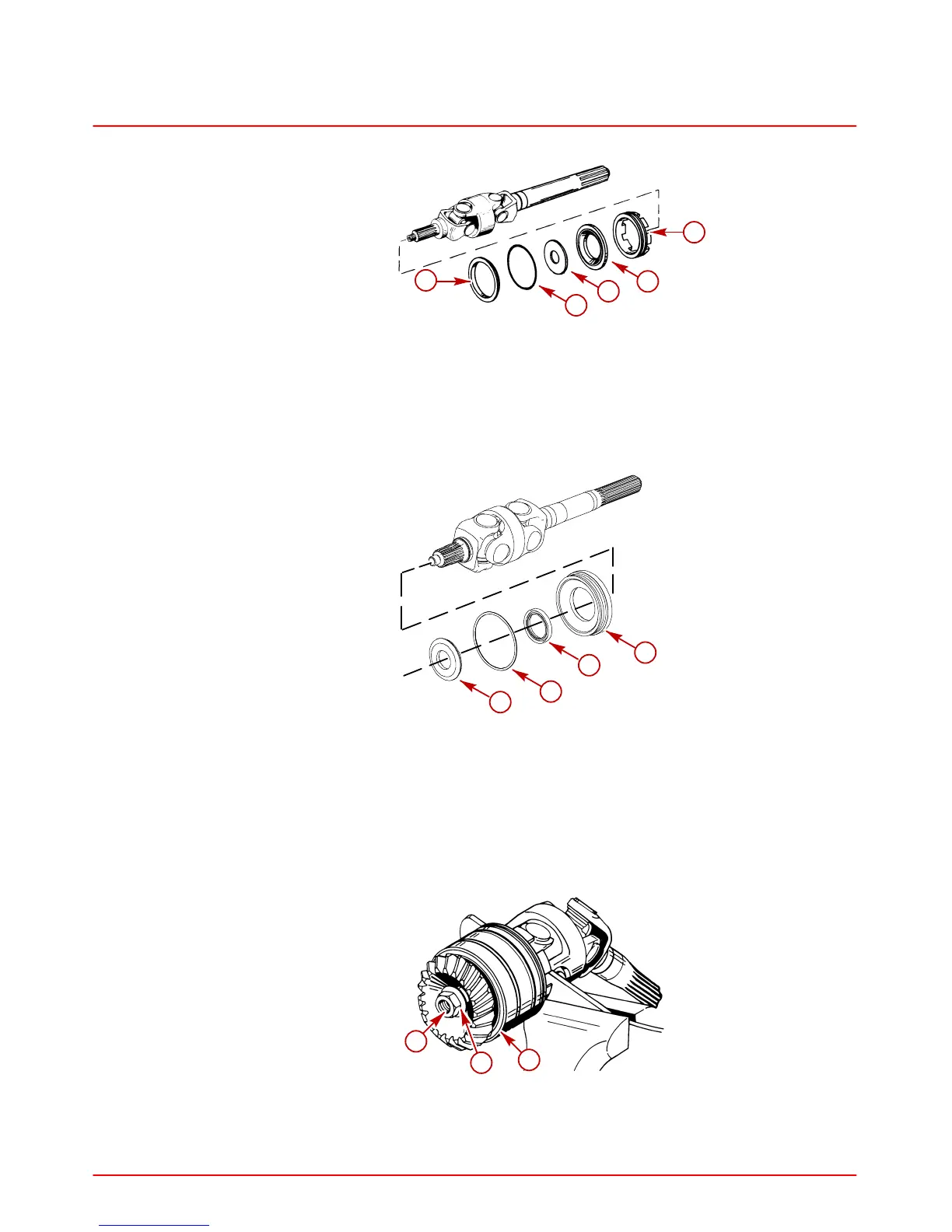

6. Install components as shown.
22249
e
a
b
c
d
Standard Bravo
a-Retainer Nut (Threaded End Toward Pinion Gear)
b-Oil Seal Carrier (Lip Of Seal Facing Pinion Gear)
c-Large Washer (Taper Facing U-joints)
d-O-ring (Position Between Oil Seal Carrier And Sealing Ring)
e-Sealing Ring (Taper Facing U-joints)
a
b
c
d
76845
Bravo X, XZ, XR & Diesel Bravo
a-Retainer Nut (Threaded End Toward Pinion Gear)
b-Oil Seal (Lip Of Seal Facing Pinion Gear)
c-O-ring (Position On Retainer Nut)
d-Thrust Washer (Taper Facing U-joints)
7. Secure pinion gear assembly to shaft with washer and new nut. Tighten nut to the point
where washer just touches gear.
22102
a
b
c
a-Nut
b-Washer
c-Pinion Gear Assembly
