BRAVO ONE GEAR HOUSING SERVICE MANUAL NUMBER 28
Page 3B-12 90-863160 MAY 2000

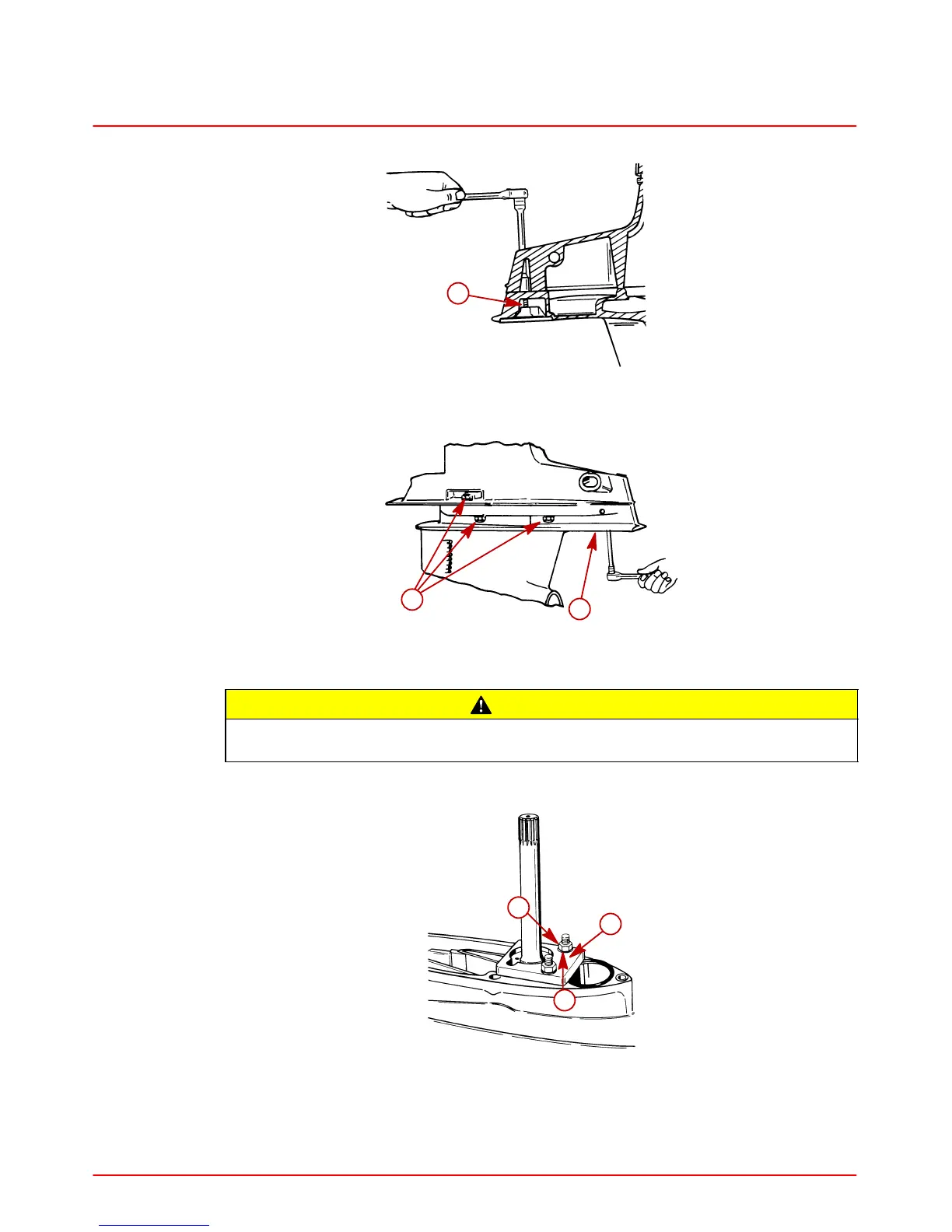

5. Remove anodic plate.
22258
a
a-1/2 in. Bolt
6. Remove gear housing from drive shaft housing.
a
b
76879
a-Nuts And Washers (6)
b-Bolt (1)
CAUTION
Clamp plate (91-43559) must be installed on gear housing when gear housing is
separated from drive shaft housing.
7. Install clamp plate on gear housing. Tighten securely.
22439
a
b
c
a-Clamp Plate
b-Nut
c-Washer (2 Per Side)
8. Finish draining gear case by turning upside down over a container.
