BRAVO ONE GEAR HOUSING SERVICE MANUAL NUMBER 28
Page 3B-36 90-863160 MAY 2000

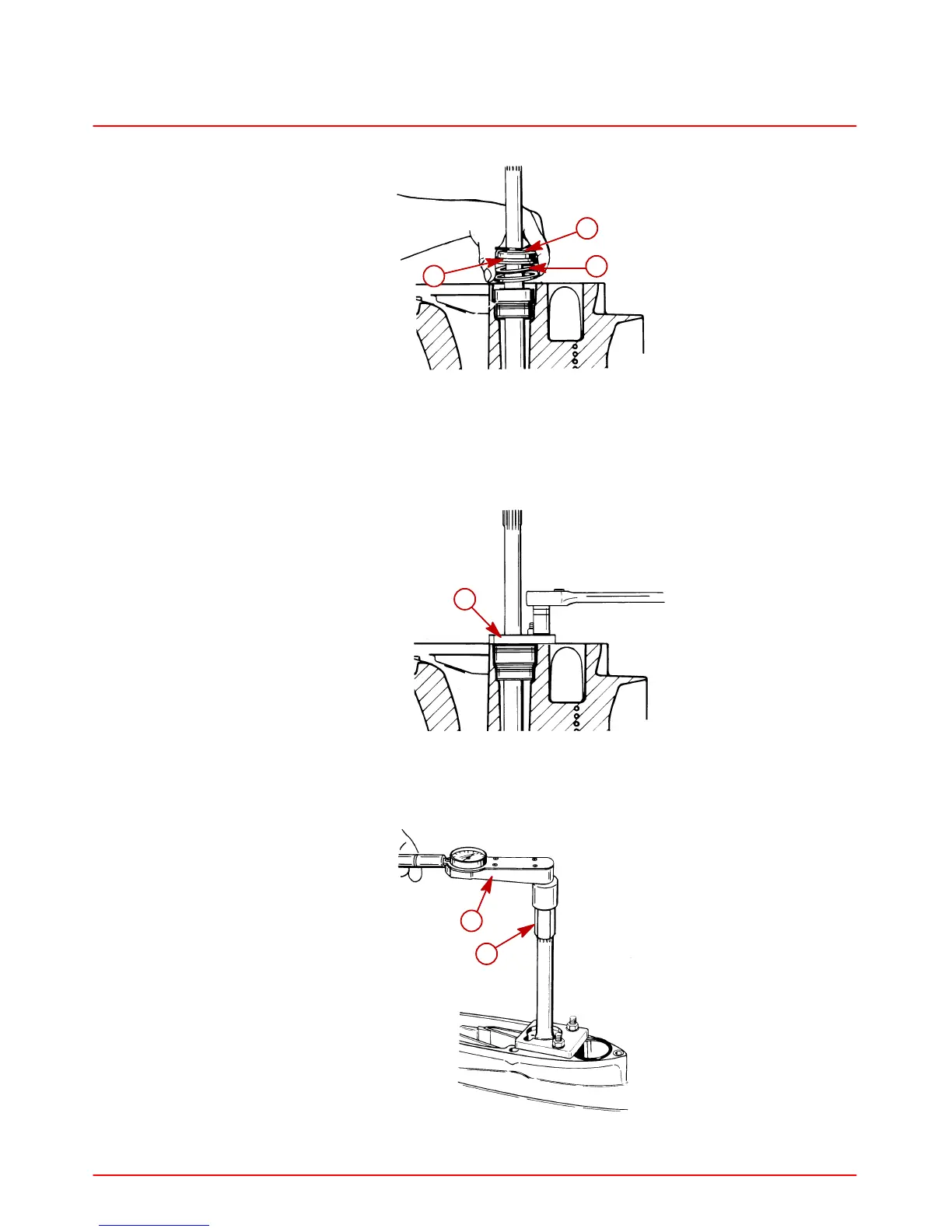

13. Install shims, spacer and O-ring.
22259
b
c
a
a-Shims
b-Spacer
c-O-ring
14. Install clamp plate on gear housing with nuts (2) and washers (4). Torque to 35 lb-ft
(47 Nm).
22262
a
a-Clamp Plate (91-43559T)
15. Using a dial-type lb-in. torque wrench, check the rolling preload by turning drive shaft
with a slow steady motion (3-5 lb-in. [0.3-0.6 Nm]).
50410
a
b
a-Torque Wrench
b-Drive Shaft Adaptor
