BRAVO TWO GEAR HOUSING SERVICE MANUAL NUMBER 28
Page 3C-32 90-863160 MAY 2000

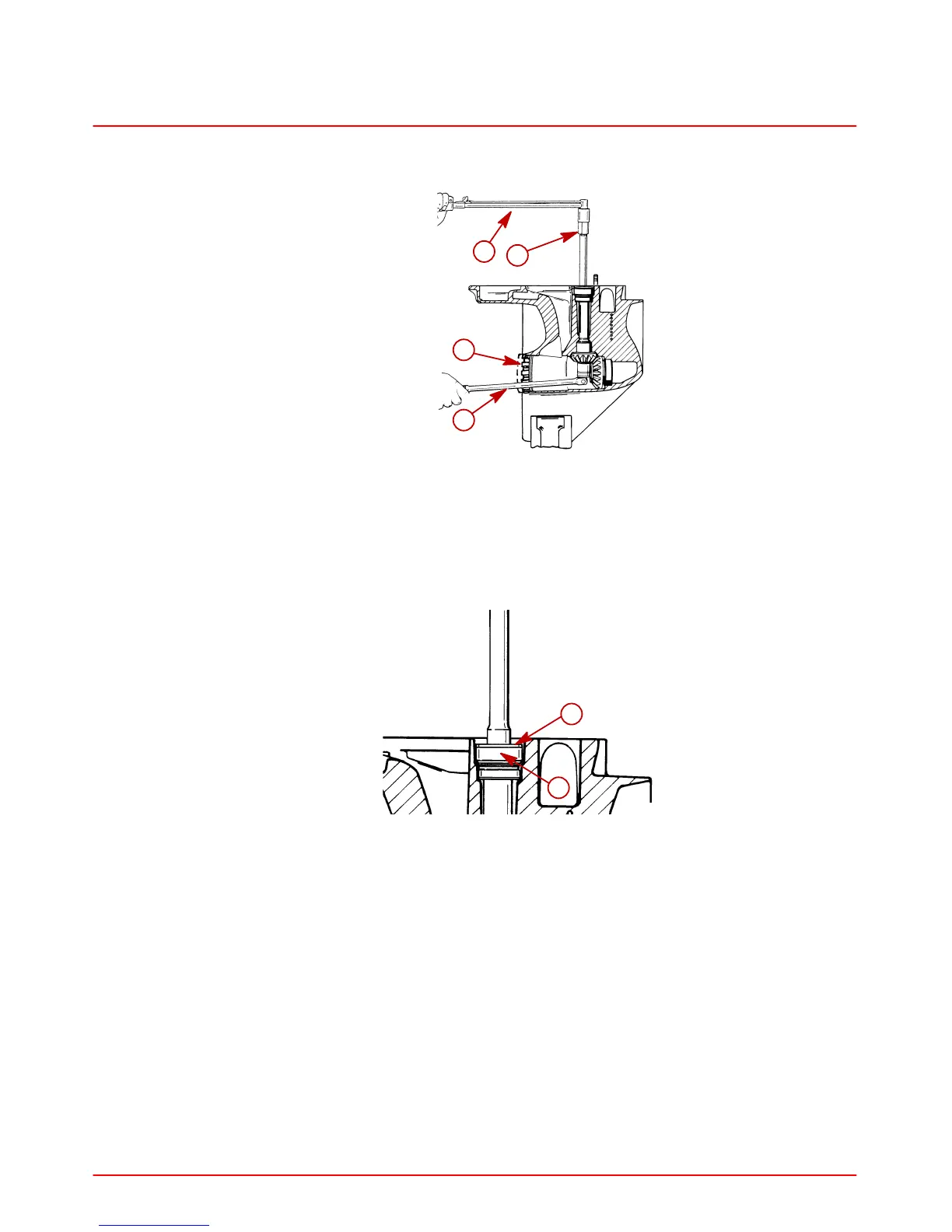

8. Temporarily install bearing carrier retainer nut to avoid damage to threads.
9. Torque pinion nut to 100 lb-ft (136 Nm).
a
c
b
d
a-Drive Shaft Adaptor Tool (91-61077T)
b-Breaker Bar And Socket
c-Torque Wrench And Socket
d-Bearing Carrier Retainer Nut
10. Remove bearing carrier retainer nut previously placed in unit for protection of threads.
11. Install upper bearing cup and tab washer.
a
b
a-Tab Washer
b-Upper Bearing Cup
To Next Page
