BRAVO TWO GEAR HOUSING SERVICE MANUAL NUMBER 28
Page 3C-38 90-863160 MAY 2000

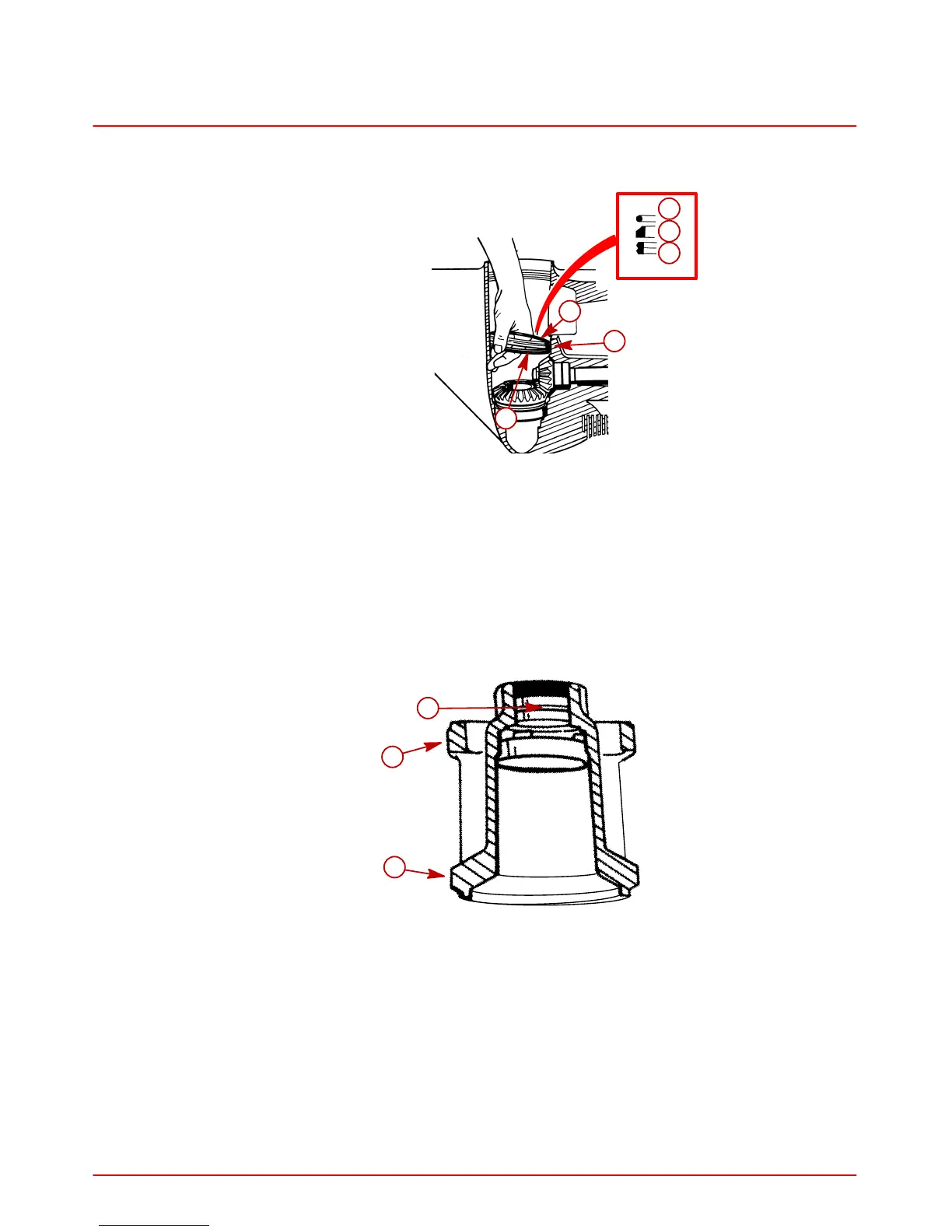

23. Remove bearing carrier and items shown. Reinstall items shown using NEW load ring.
IMPORTANT: Always use a new load ring when reassembling.
76884
a
b
c
b
a
c
a-O-Ring
b-Thrust Ring
c-Load Ring
IMPORTANT: Bearing carrier and threads on retainer must be lubricated to prevent
corrosion and cracking in gear housing. Use Quicksilver Special Lubricant 101 on
retainer; coat outside diameter on carrier “rounds” (b) with Perfect Seal.
24. Lubricate bearing carrier seals and fill space between seals with Quicksilver 2-4-C
marine lubricant with Teflon. Coat carrier mating surfaces with Perfect Seal.
b
b
a
a-Space Between Seals
b-Carrier Mating Surfaces
