SERVICE PROCEDURES REQUIRING MINOR DISASSEMBLY
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 4A-11

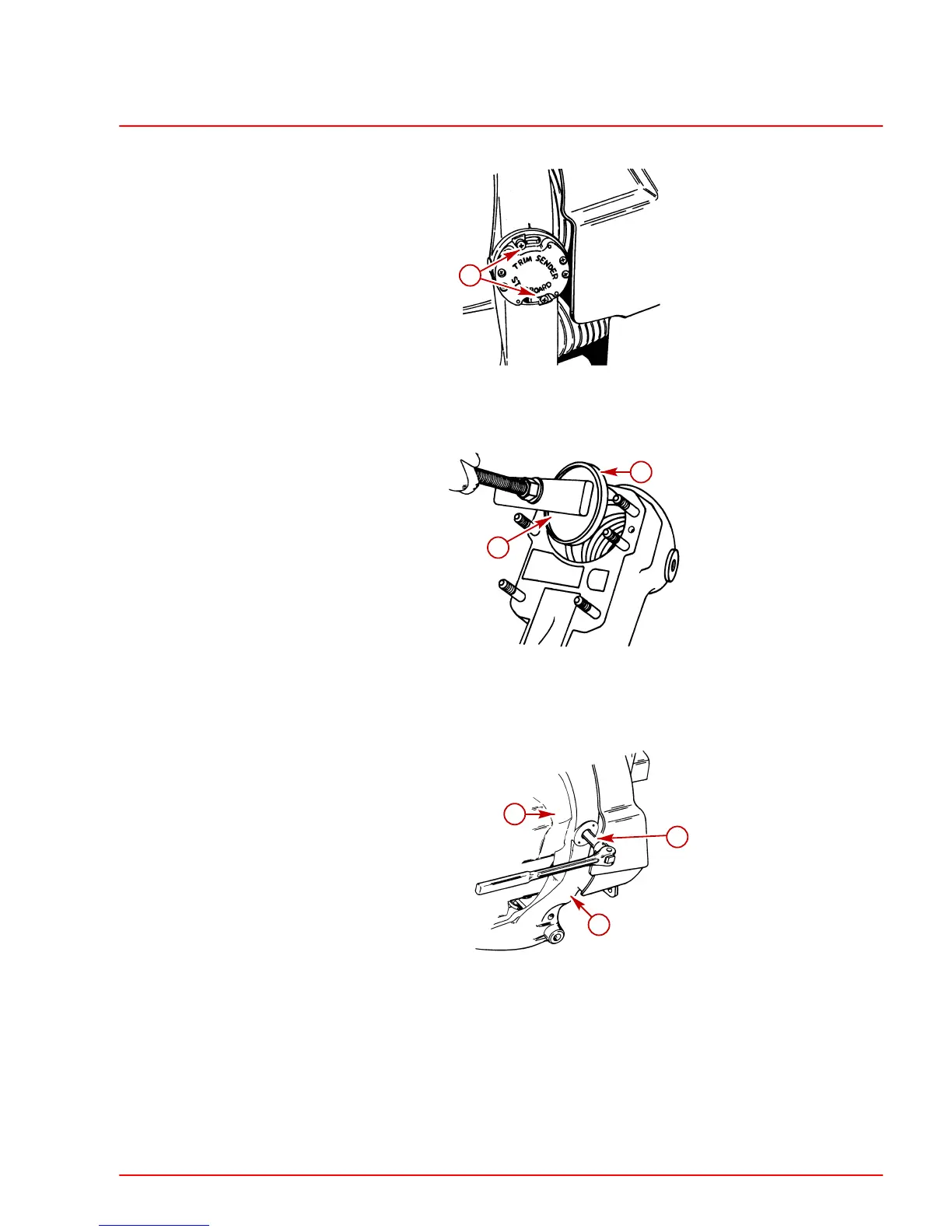

3. Remove trim position sender.
71220
a
a-Attaching Hardware
4. Remove U-joint bellows sleeve.
71527
a
b
a-Sleeve
b-Removal Tool (P/N 91-862546)
5. Remove both hinge pins.
22113
a
b
c
a-Bell Housing
b-Gimbal Ring
c-Hinge Pin Tool (P/N 91-78310)
To Next Page
