SERVICE PROCEDURES REQUIRING MAJOR DISASSEMBLY
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 4B-11

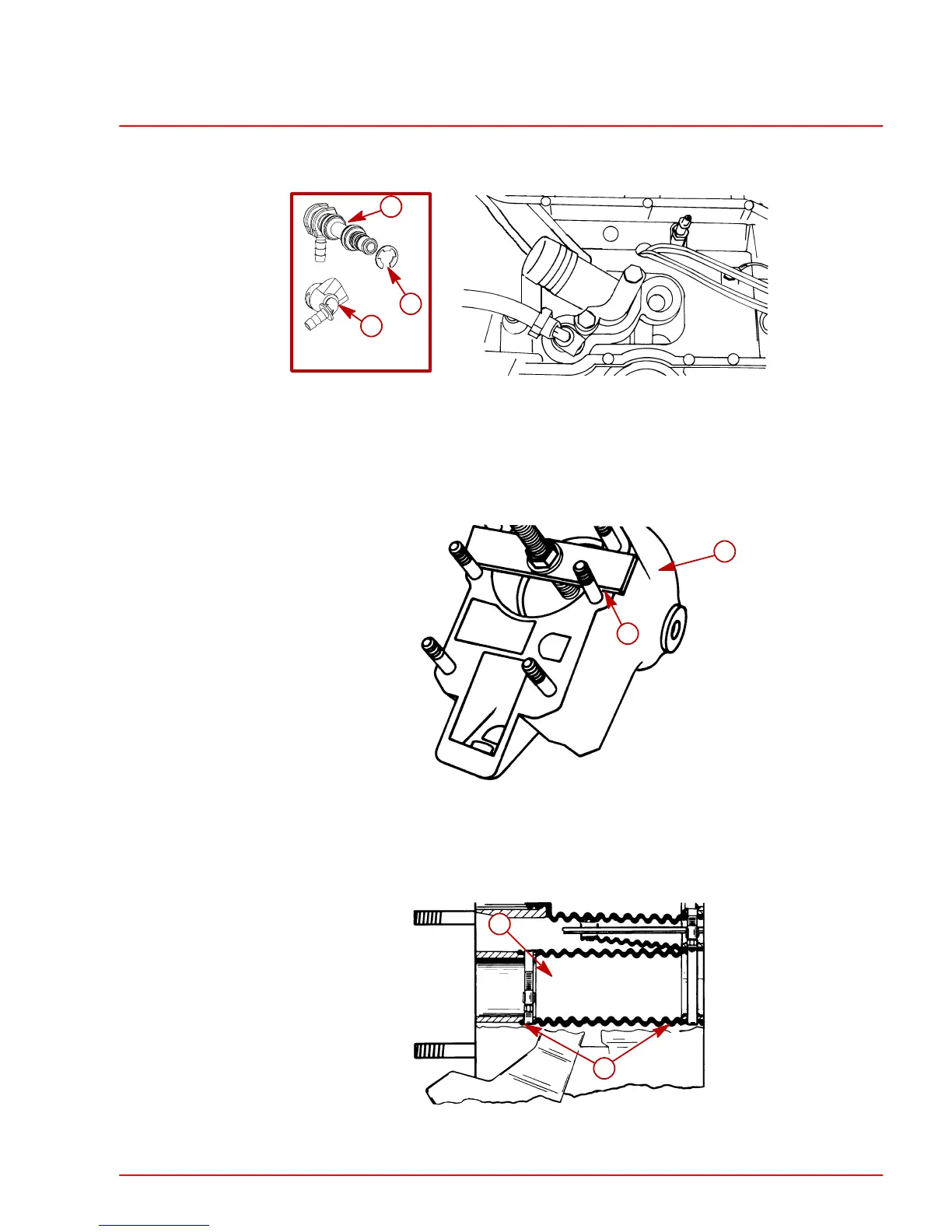

7. Remove gear lube monitor 90° quick disconnect fitting and through bulkhead fitting
E-clip so that fitting will pull out of gimbal housing upon removal of bell housing.
76640
a
b
c
76665
a-Quick Disconnect Fitting
b-E-Clip
c-Through Bulkhead Fitting
8. Spray engine cleaner around edge of bellows sleeve and remove with U-joint bellows
sleeve removal tool.
71526
a
b
a-Bell Housing
b-U-Bellows Sleeve Removal Tool (91-862546)
9. Loosen hose clamps.
10. Remove exhaust bellows from bell housing.
22116
a
b
a-Exhaust Bellows
b-Hose Clamps
To Next Page
