SERVICE PROCEDURES REQUIRING MAJOR DISASSEMBLY

SERVICE MANUAL NUMBER 28

90-863160 MAY 2000 Page 4B-41

6. Tighten locknut until a clearance of .002 - .010 in. (0.05 - 0.25 mm) exists between lower

swivel pin washer and gimbal housing mount.

70156

ÂÂ

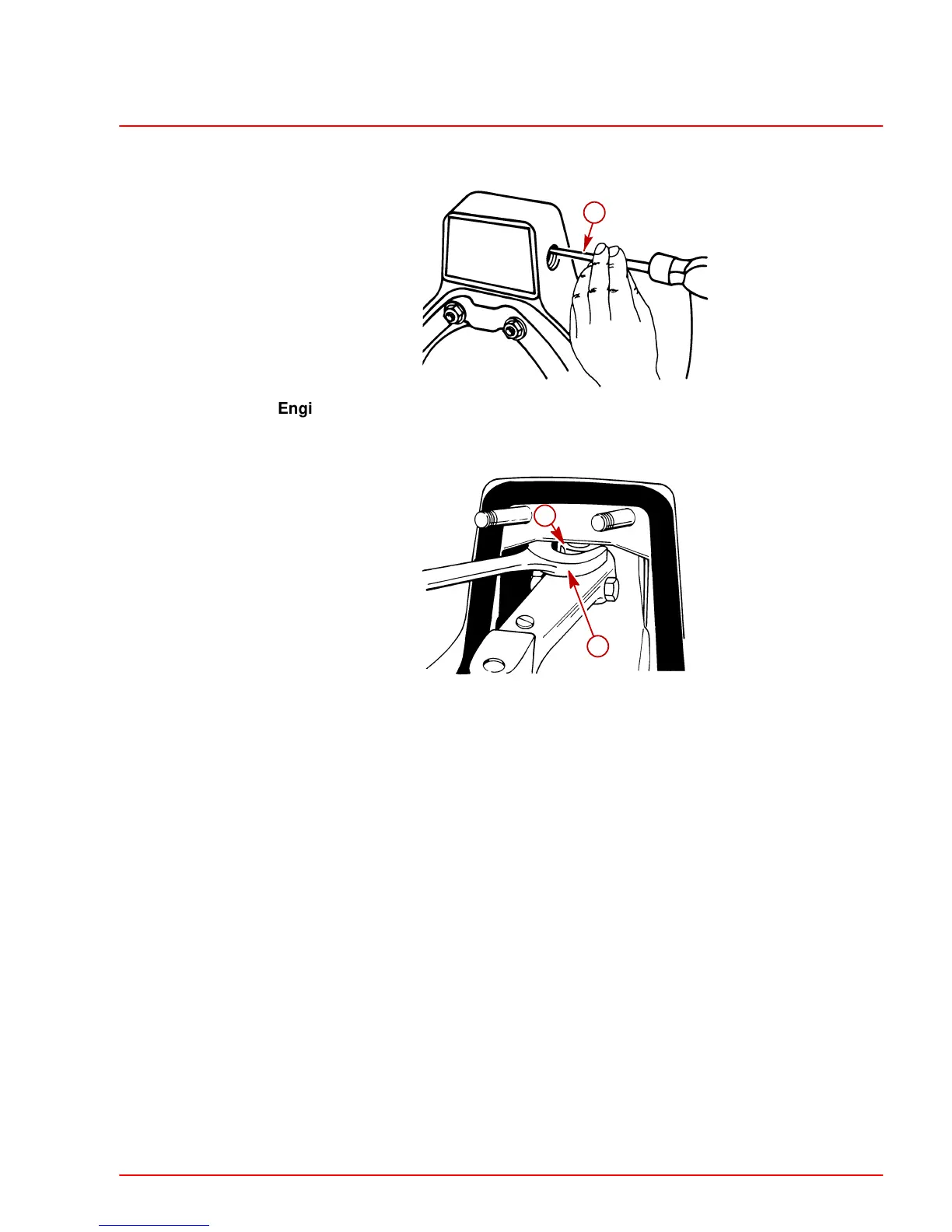

Engine And Transom Assembly Installed

a-Pin Punch

22452

Engine And Transom Assembly Removed

a-Locknut

b-1-1/16 in. Wrench
