SERVICE PROCEDURES REQUIRING MAJOR DISASSEMBLY SERVICE MANUAL NUMBER 28
Page 4B-54 90-863160 MAY 2000

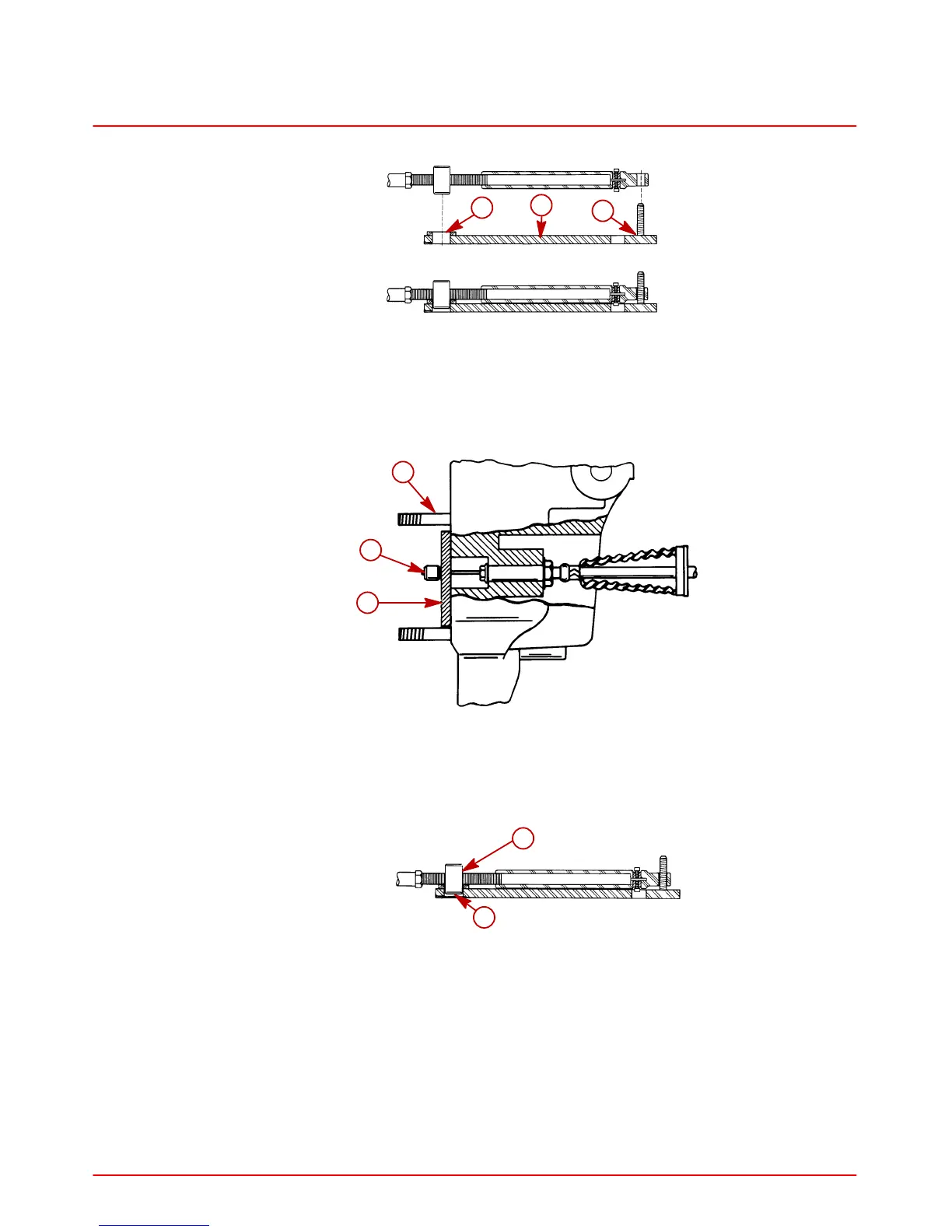

9. Place shift cable anchor adjustment tool on end of shift cable.
22120
a
b
c
a-Shift Cable Anchor Adjustment Tool (91-17262)
b-Stud
c-Hole - Barrel Placed Here
10. Ensure that bell housing end of core wire is positioned tight against core wire locating
tool.
22121
a
b
c
a-Bell Housing
b-Core Wire Locating Tool
c-Core Wire
11. Adjust cable barrel to align with hole in tool.
22120
a
b
a-Barrel
b-Hole in Tool
