POWER STEERING SERVICE MANUAL NUMBER 28
Page 6A-30 90-863160 MAY 2000

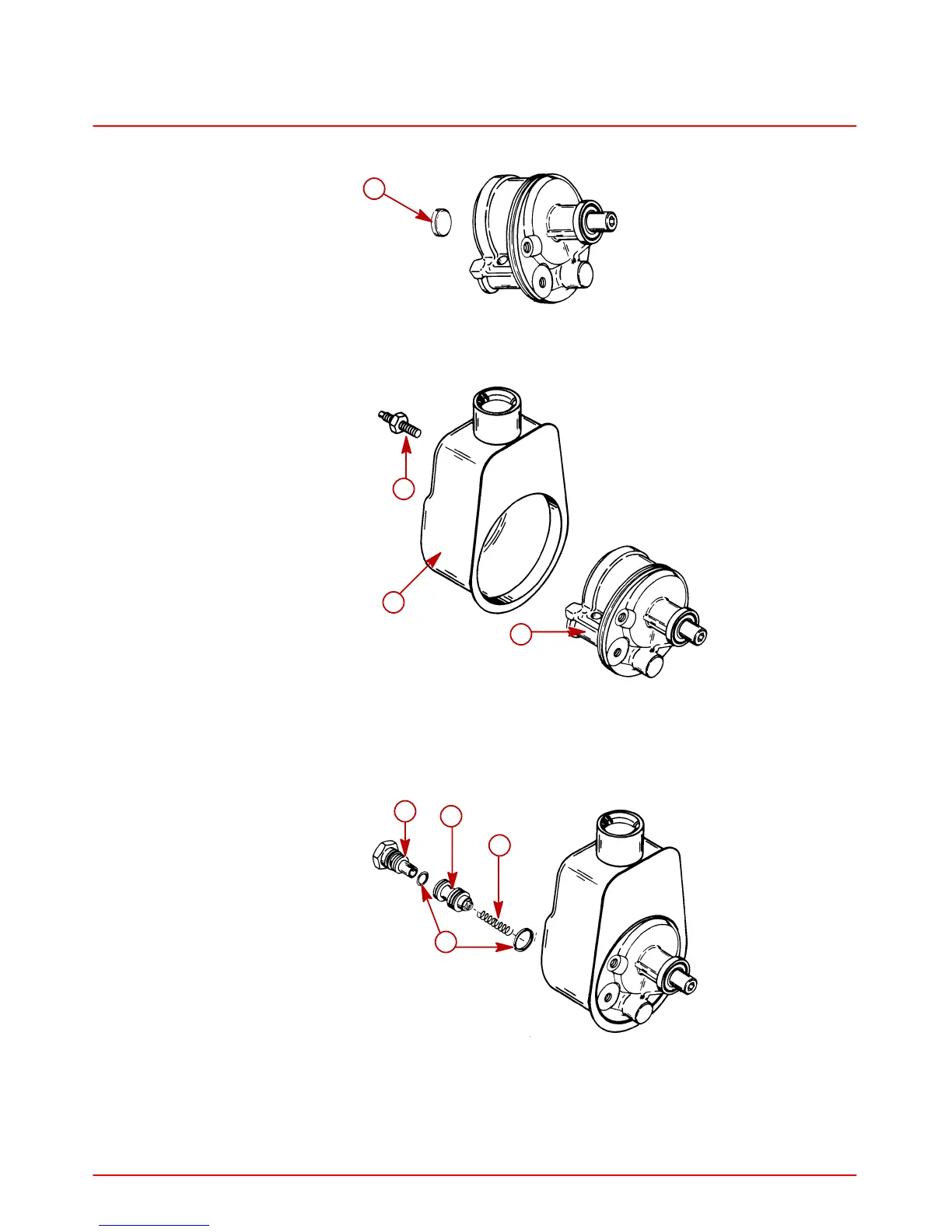

12. Place magnet on housing.
22153
a
a-Magnet
13. Secure reservoir to pump housing. Torque studs to 35 lb-ft (47 Nm).
22153
a
b
c
a-Reservoir
b-Pump Housing
c-Studs
14. Install components shown. Torque fitting assembly to 35 lb-ft (47 Nm).
22153
a
b
c
d
a-Flow Control Spring
b-Control Valve Assembly
c-O-ring For Fitting Assembly
d-Fitting Assembly
