REMOVAL, INSTALLATION AND ADJUSTMENTS SERVICE MANUAL NUMBER 28

Page 2A-10 90-863160 MAY 2000

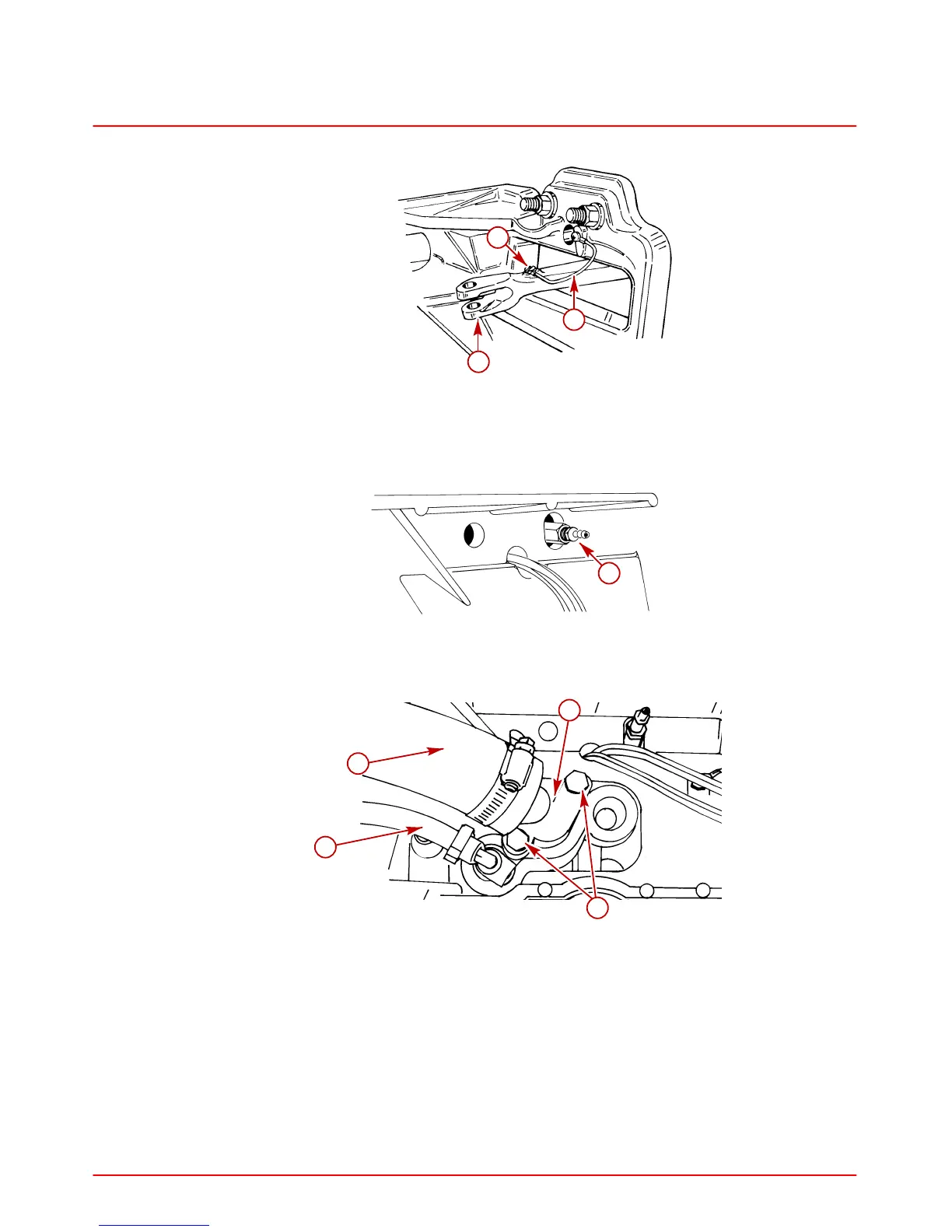

6. Remove the continuity wire from the steering lever.

22028

a-Steering Lever

b-Screw

c-Continuity Wire

7. Disconnect the speedometer hoses.

70015

a-Speedometer Fitting

8. Remove seawater intake hose.

76636

a-Seawater Intake Hose

b-Seawater Pickup Outlet

c-Bolts and Star Washers

d-Gear Lube Monitor Hose

9. Remove seawater pickup outlet.

10. Remove gear lube monitor hose.
