Assembly - continued

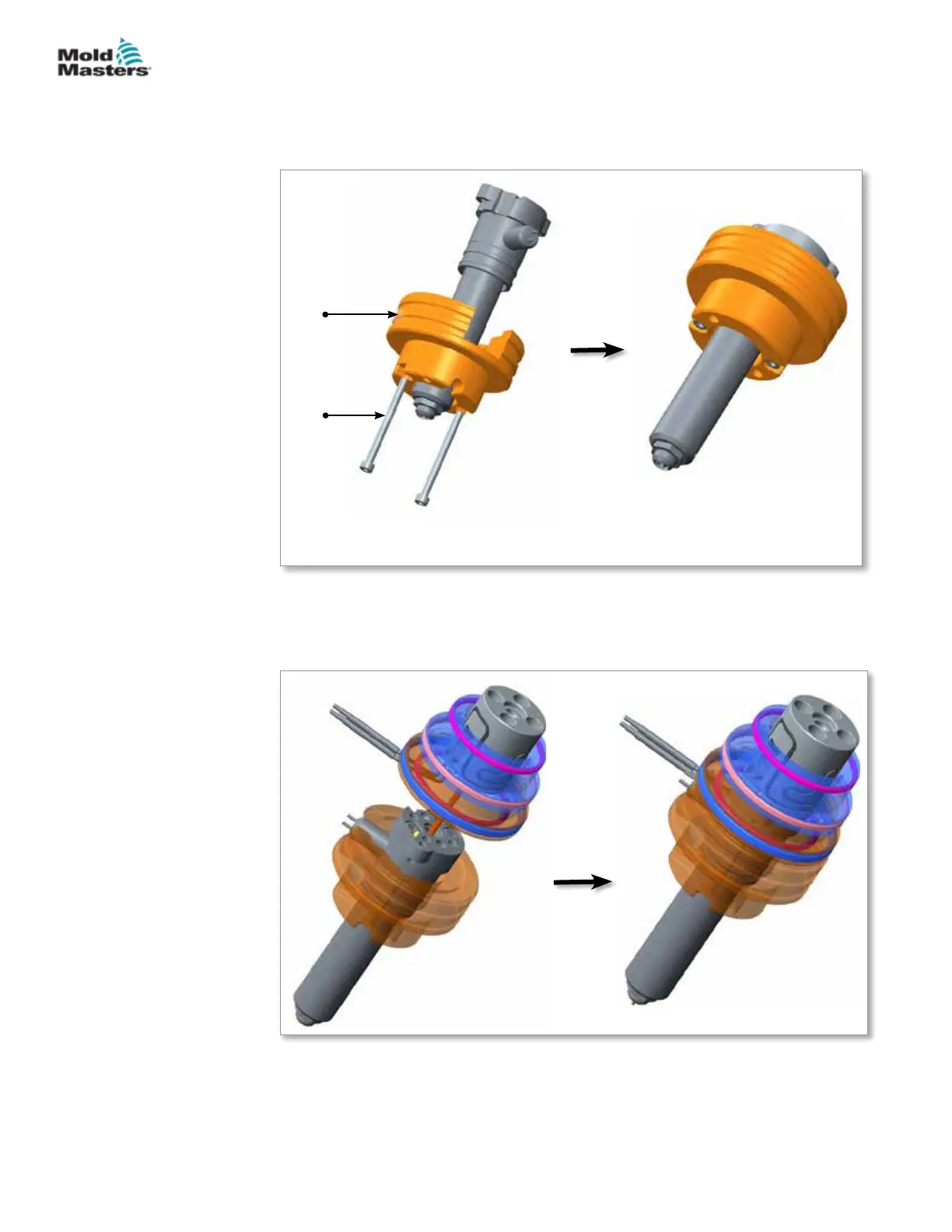

15. Align the nozzle terminal with the slot on the retainer. Seat the nozzle
ange on the retainer and fasten the retainer to the valve bushing with
socket head cap screws. Torque to 3.6 Nm (2.6 ft-lb). See Figure 11-16.
1
2
1. Retainer 2. SHCSM4X50 (2X)
Figure 11-16 Attach retainer to valve bushing
16. Position the dowel on the valve bushing to align with the slot on the
heated body. Carefully attach the valve bushing unit to the heated body.
See Figure 11-17.
Figure 11-17 Attach valve bushing to the heated body
11-11SLIMSTACK ACTUATOR
Hot Runner User Manual
© 2020 Mold-Masters (2007) Limited. All Rights Reserved.
