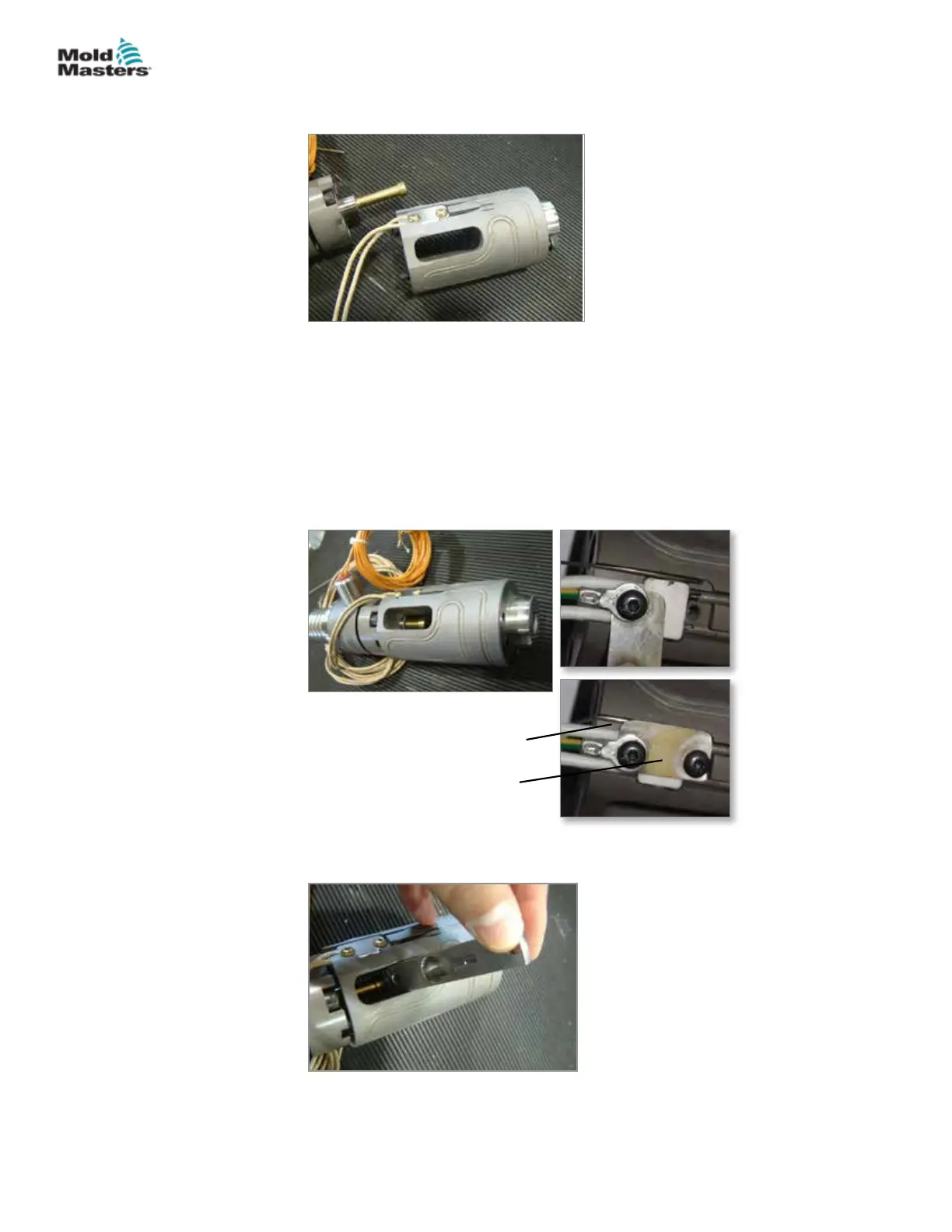

16. Slide the valve pin into the nozzle assembly.
17. Place the heater body over the assembly.
18. Install the heater body thermocouple as follows:
a) Remove the body wire retainer.
b) Fully insert the end of the thermocouple into the mating hole and
bend it into the thermocouple groove.
c) Reinstall the wire retainer.
19. Finish installing the heater body onto the nozzle assembly and torque to
the specication given in the General Assembly drawing.
Thermocouple installed
in groove
Heater body
wire retainer
20. Slide the valve pin holder into the heater body slot and over the valve pin
head.
