NOTE
The valve pin holder should be locked with and move together with the
valve pin. See Figure 17-2.

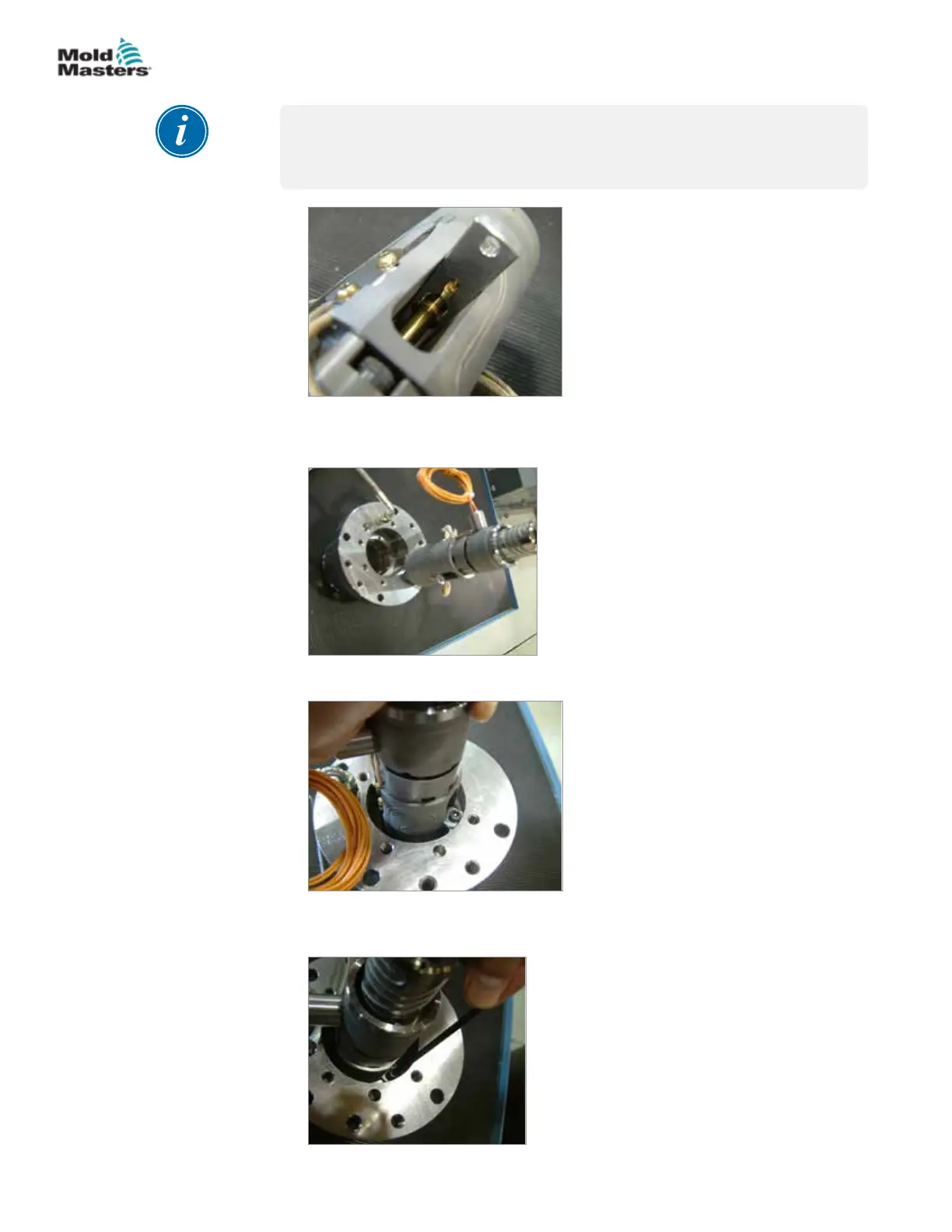

Figure 17-2 Accu-Line™ valve pin holder and valve pin
21. Carefully place the nozzle assembly into the hydraulic unit as shown.
22. Ensure that the nozzle terminal end is correctly oriented.
23. Secure the valve pin holder to piston. Tighten to specications detailed in
the General Assembly drawing.
Accu-Line™ with Valve Bushing Assembly - continued
17-7ACCU-LINE™
Hot Runner User Manual
