- Take out the stem.
- Check there are no signs of wear or seizing between the stem and the fork leg. Otherwise, replace
the damaged parts.
Characteristic
Maximum fork leg diameter
35.10 mm
Minimum stem diameter
34.90 mm

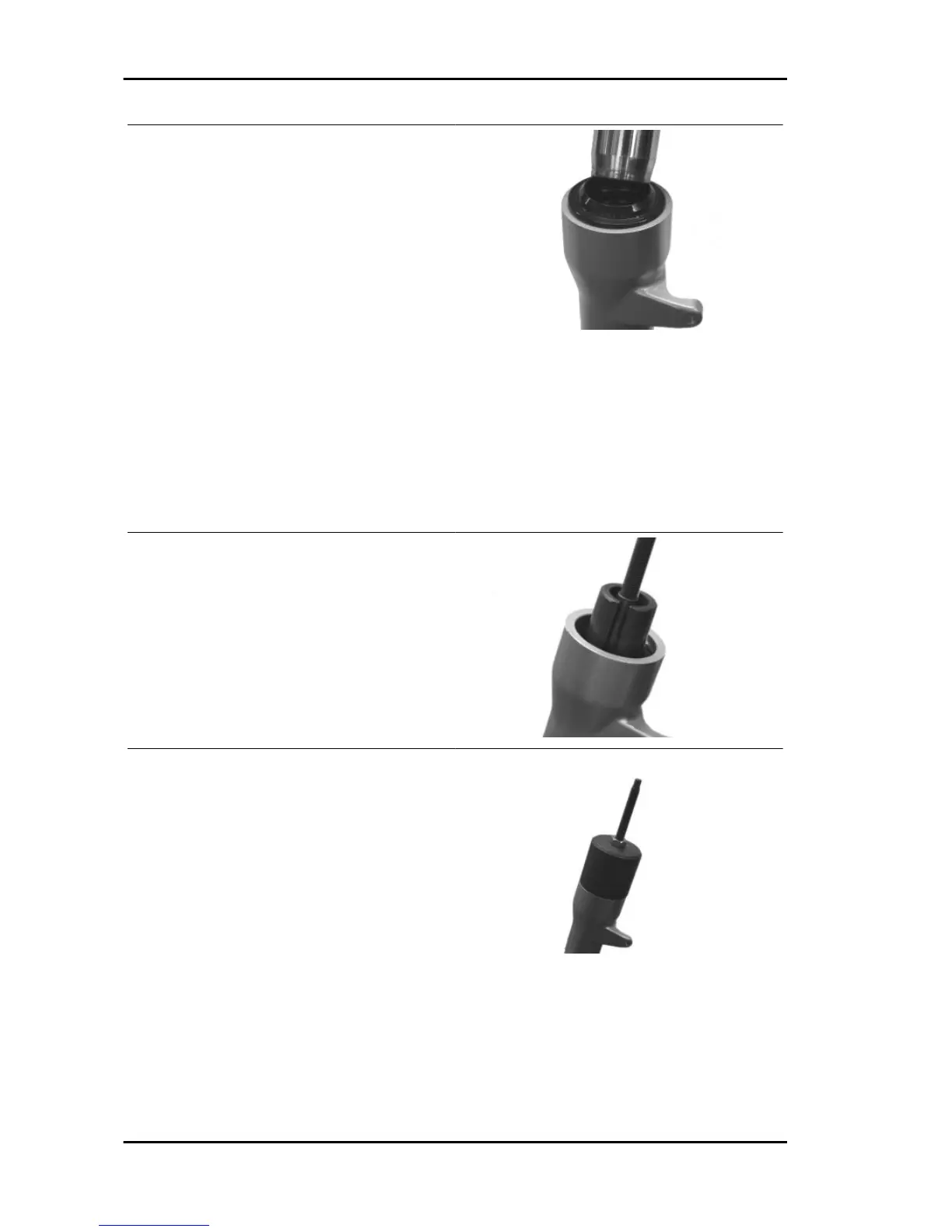

- Take out the oil seal using the appropriate tools.
- Fit the tie rod into the oil seal.
- Insert in sequence the two half-rings per Ø 35-
mm stems.
Specific tooling
020487Y Fork oil seal extractor
- Hold the tie rod manually so that it does not fall
into the fork leg and/or that both half-rings are not
in their position.
- Fit the bell.
- Tighten the nut until it stops.
- Act on the tool until the oil seal is completely re-
moved.
Specific tooling
020487Y Fork oil seal extractor
