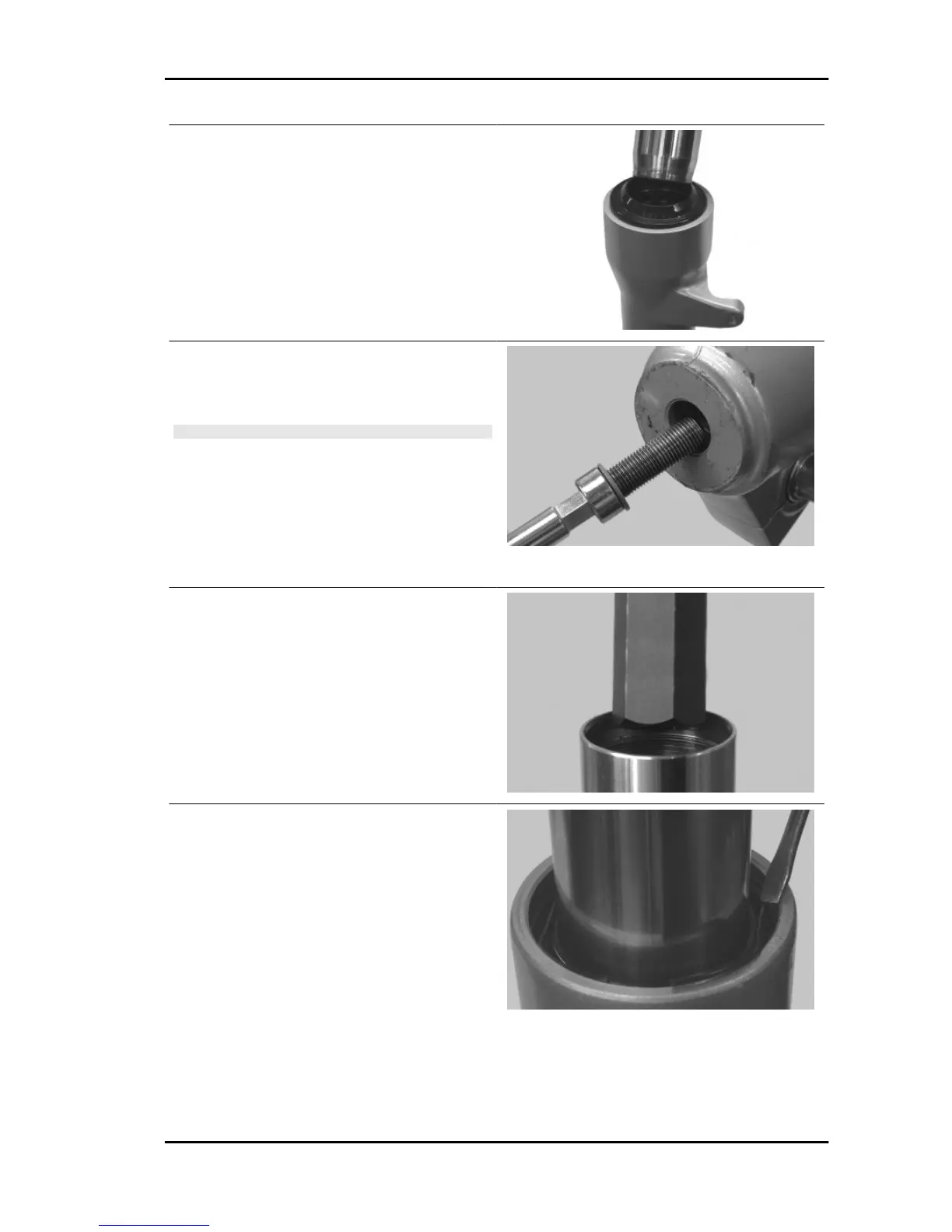

- Pre-fit the stem with the hydraulic rod, the spring
and the stop bushing.
- Fit the pre-assembled components inside the fork
leg.
- Fit the hydraulic rod fixing screw with the copper
sealing washer and tighten to the prescribed tor-
que using the recommended product.
CAUTION
ALWAYS USE NEW COPPER WASHER.
Locking torques (N*m)
Hydraulic rod fixing screw 25 ÷ 35*
(°) Apply LOCTITE 243 threadlock
- Lock hydraulic rod rotation using a 19-mm hex-
agonal spanner.
- Fit the oil seal retaining circlip.
Beverly 300 i.e. Suspensions
SUSP - 211
