circuit blocks:
 A capacitor C connected in parallel with a resistor.
 An inductor L connected in series with a resistor.

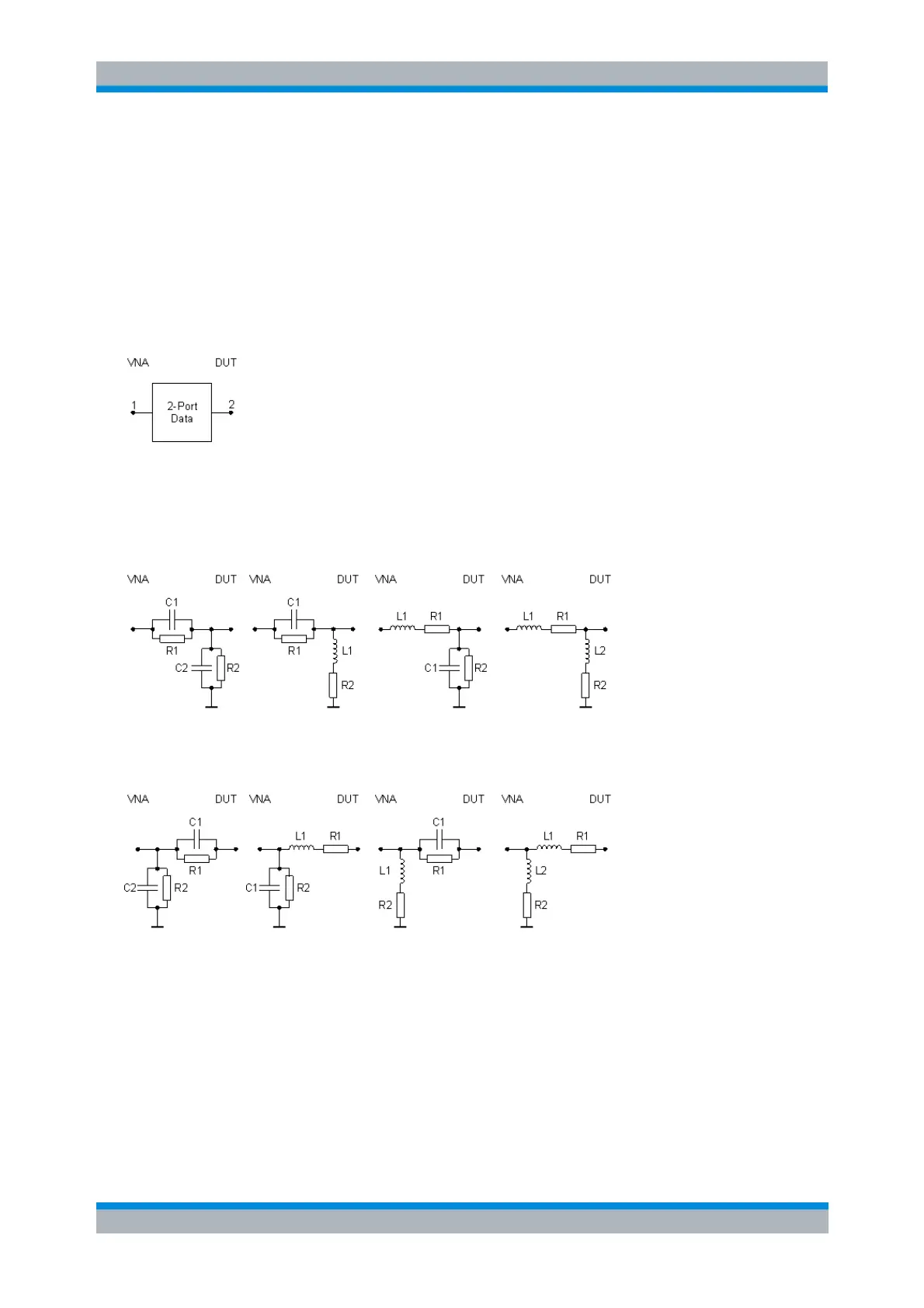

The 2-port transformation networks comprise all possible combinations of 2 basic blocks, where one block
represents a serial, the other a shunt element. In the default setting the resistors are not effective, since
the serial Rs are set to 0 Ω, the shunt Rs are set to 10 MΩ.
The first network is defined by its S-parameters stored in an imported two-port Touchstone file (*.s2p). No
additional parameters are required.
The following networks are composed of a serial C or L (as seen from the test port), followed by a shunt C
or L. They are named Serial C, Shunt C / Serial C, Shunt L / Serial L, Shunt C / Serial L, Shunt L.
The following networks are composed of a shunt C or L (as seen from the analyzer port), followed by a
serial C or L. They are named Shunt C, Serial C / Shunt C, Serial L / Shunt L, Serial C / Shunt L, Serial L.
Remote
control:
CALCulate<Ch>:TRANsform:VNETworks:SENDed...
MMEMory:LOAD:VNETworks<Ch>:SENDed:DEEMbedding<Ph_pt>
'<file_name>'
MMEMory:LOAD:VNETworks<Ch>:SENDed:EMBedding<Ph_pt> '<file_name>'
Embedding/Deembedding at Logical Port
Selects a 4-port transformation network for balanced port (de-)embedding, defines its parameters, assigns
