RL78/G1H CHAPTER 14 SERIAL ARRAY UNIT

R01UH0575EJ0120 Rev. 1.20 Page 368 of 920

Dec 22, 2016

(3) Processing flow (in single-reception mode)

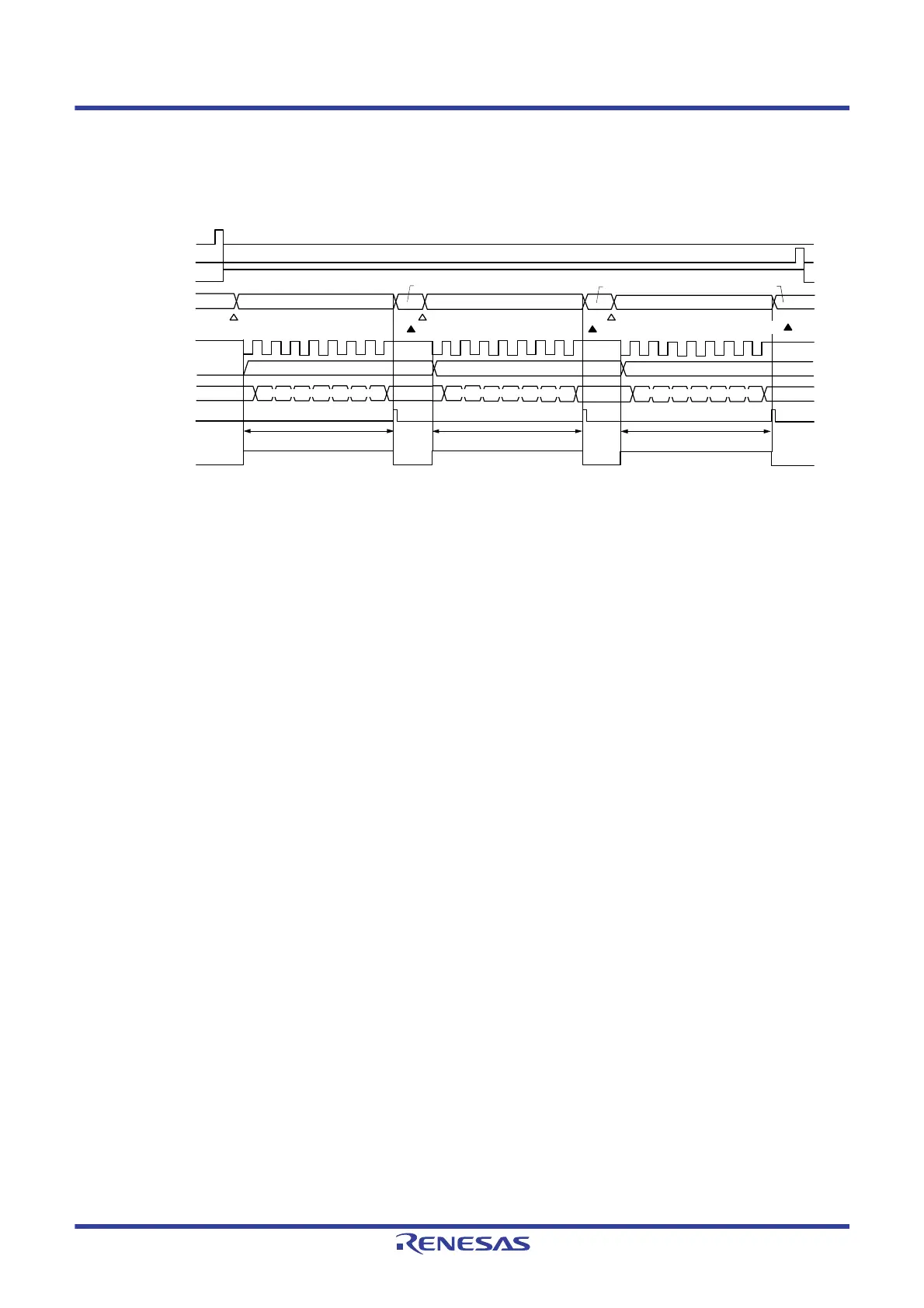

Figure 14 - 36 Timing Chart of Master Reception (in Single-Reception Mode)

(Type 1: DAPmn = 0, CKPmn = 0)

Receive data 3Receive data 2Receive data 1

Dummy data for reception

Dummy data

Receive data 1 Receive data 2 Receive data 3

SSmn

SEmn

SDRmn

STmn

SCKp pin

SIp pin

Shift register mn

INTCSIp

TSFmn

Data receptionData receptionData reception

Reception & shift operation Reception & shift operation Reception & shift operation

Write

Read

WriteWrite
