RL78/G1H CHAPTER 15 SERIAL INTERFACE IICA

R01UH0575EJ0120 Rev. 1.20 Page 486 of 920

Dec 22, 2016

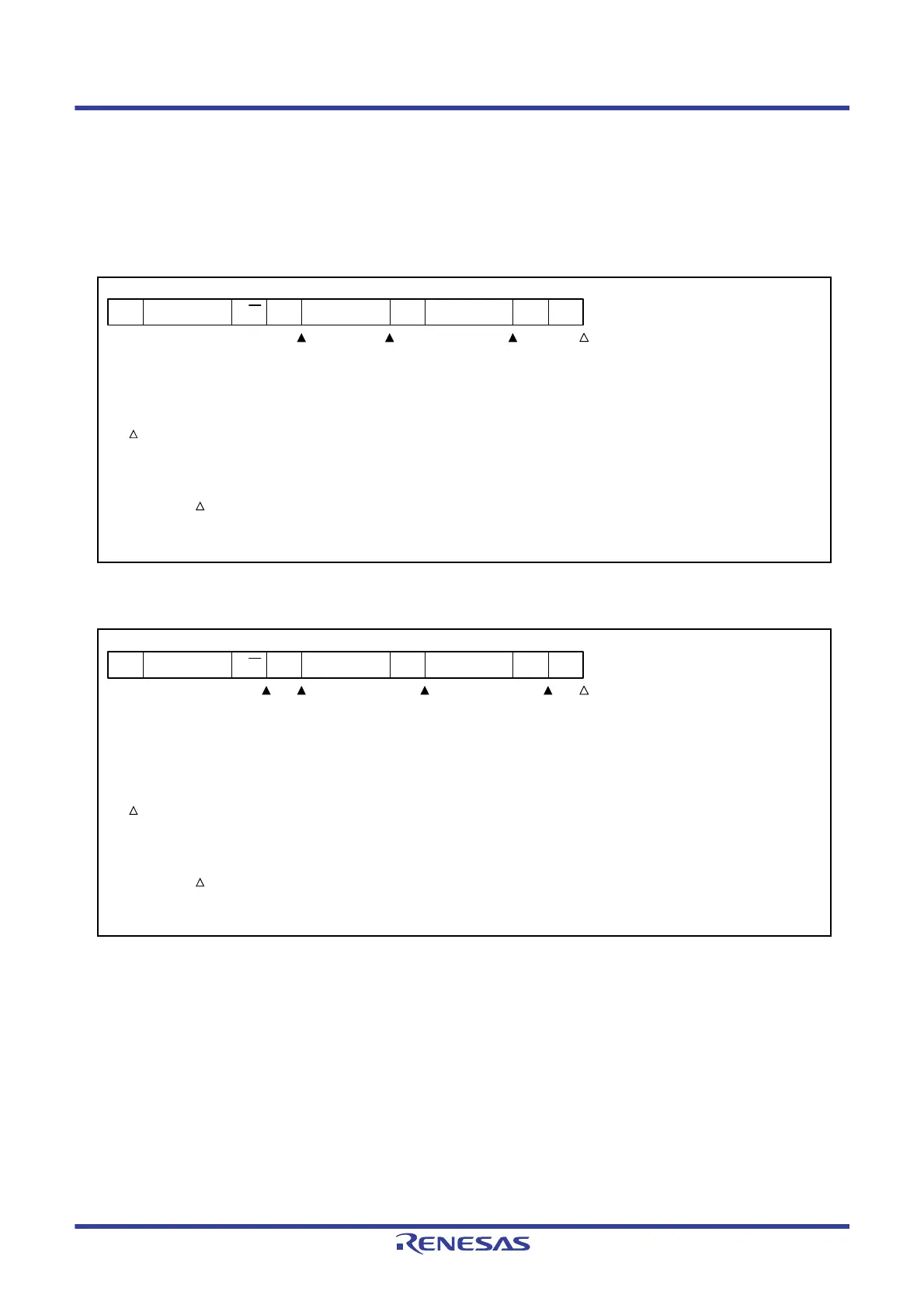

(3) Slave device operation (when receiving extension code)

The device is always participating in communication when it receives an extension code.

(a) Start ~ Code ~ Data ~ Data ~ Stop

(i) When WTIMn = 0

(ii) When WTIMn = 1

Remark n = 0, 1

ST AD6 to AD0 D7 to D0R/W ACK ACK SPD7 to D0 ACK

4 3 2 1

▲1: IICSn = 0010×010B

▲2: IICSn = 0010×000B

▲3: IICSn = 0010×000B

4: IICSn = 00000001B

Remark ▲: Always generated

: Generated only when SPIEn = 1

× : Don’t care

ST AD6 to AD0 D7 to D0R/W ACK ACK SPD7 to D0 ACK

5 4 3 2 1

▲1: IICSn = 0010×010B

▲2: IICSn = 0010×110B

▲3: IICSn = 0010×100B

▲4: IICSn = 0010××00B

5: IICSn = 00000001B

Remark ▲: Always generated

: Generated only when SPIEn = 1

× : Don’t care
