RL78/G1H CHAPTER 15 SERIAL INTERFACE IICA

R01UH0575EJ0120 Rev. 1.20 Page 492 of 920

Dec 22, 2016

(ii) When WTIMn = 1

(6) Operation when arbitration loss occurs (no communication after arbitration loss)

When the device is used as a master in a multi-master system, read the MSTSn bit each time interrupt

request signal INTIICAn has occurred to check the arbitration result.

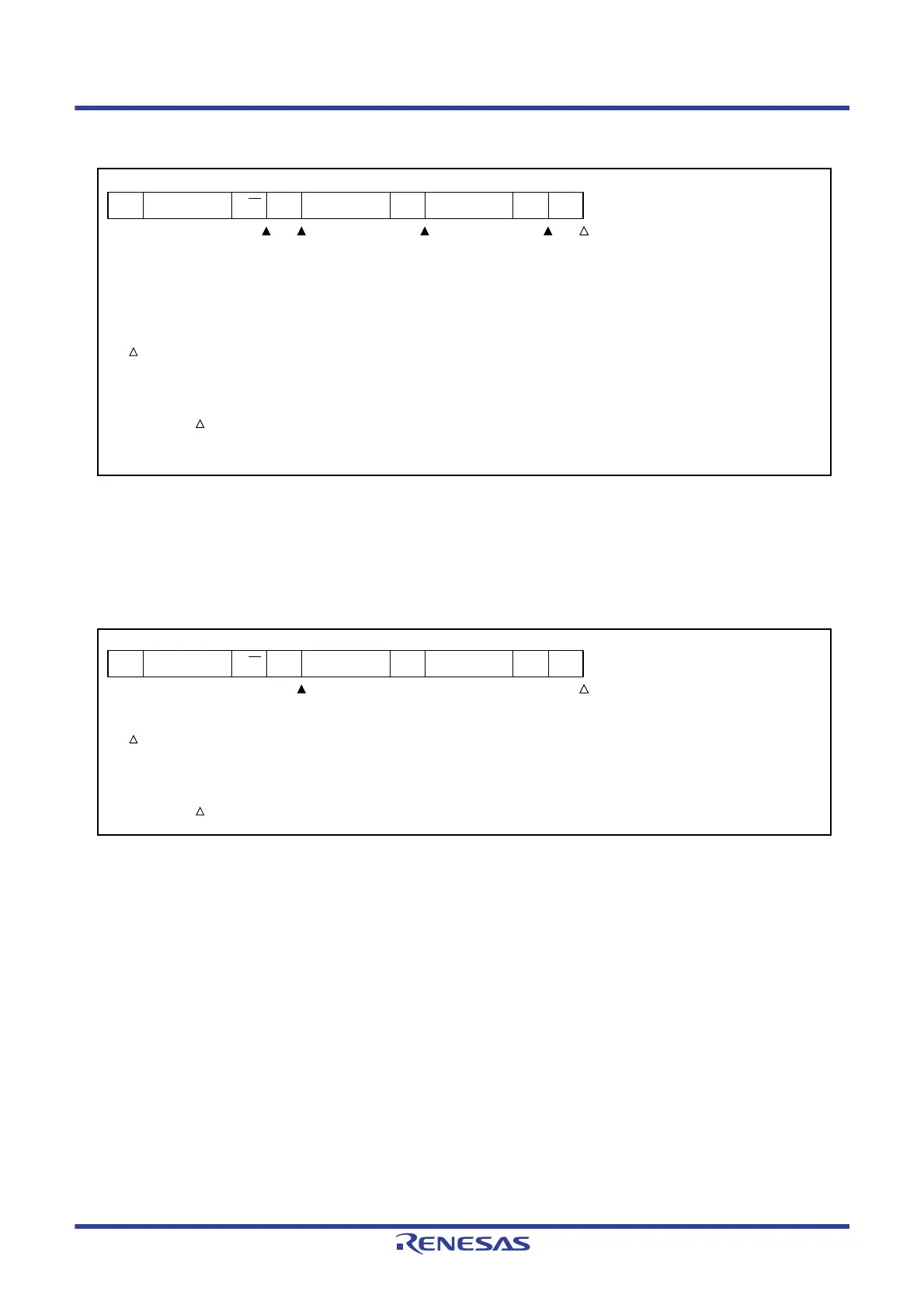

(a) When arbitration loss occurs during transmission of slave address data (when WTIMn = 1)

Remark n = 0, 1

ST AD6 to AD0 D7 to D0R/W ACK ACK SPD7 to D0 ACK

5 1 2 3 4

▲1: IICSn = 0110×010B

▲2: IICSn = 0010×110B

▲3: IICSn = 0010×100B

▲4: IICSn = 0010××00B

5: IICSn = 00000001B

Remark ▲: Always generated

: Generated only when SPIEn = 1

× : Don’t care

ST AD6 to AD0 D7 to D0R/W ACK SPD7 to D0 ACKACK

2 1

▲1: IICSn = 01000110B

2: IICSn = 00000001B

Remark ▲: Always generated

: Generated only when SPIEn = 1
